配件展示
黔东南约翰迪尔强鹿4045柴油机配件活塞销厂家批发

配件详情

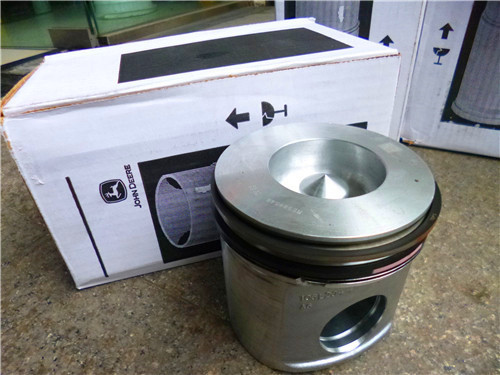

约翰迪尔 6081 高压缩活塞


PowerTech
系列
发动机和设备型号
6081

根据发动机序列号199,999

8.1L

高压缩活塞

4801  4803

发动机型号:

6081HRW27

TOK504201A

孔径:
4.56 in 116 mm

销径 Ø:
1.8742 in (+/- .0002) = 47 mm

连杆(米):
R116340 (To ESN 86,536)
R501034 (从 86,537)
连杆(米):
RE70688
RE64509

洋马发动机

农业
1270D
8300T
1470D
8310
2256
8310T
2258
8400T
2264
9100
2266
9100
7710
9510 SH
7810
9550
8100
9550 SH
8100T
9560 WTS
8110
9560i WTS
8110T
9580 WTS
8200
9580i WTS
8200T
9640 WTS
8210
9640i WTS
8210T
9970
8300
工程机械
330 C LC
759 JH
330 LC
762 B
330 LCR
770 C
370
770 C Series II
370 C
770 D
530 B
770 CH
535
770 CH Series II
560 D
772 D
608 L
772 CH
608 S
772 CH Series II
644 G
848 G
644 H
850
644 J
850 C
660 D
850 C-II
724 J
850J
740 G
853 G
748 G
870 D
748 G-II
872 D
748 G-III
900
753 GL
903
753 J
950
753 JH
953 G
759 G
1710 D
759 J
3554
活塞缸套组件
TRE64509
(RE53000)
组成:
a)
TRE70688
b)
TRE503528
c)
TR57771
d)
TR116236
e)
TAR98850
f)
TE1343FN
主轴瓦
TRE529319
Std.
TRE534181
0.0115
需要6片
止推轴承
TRE529320
Std.
TRE504199
0.0115
需要1片
止推垫片
TRE61253
Std.
使用3片 ,订购数量:1
连杆瓦
TR116081
Std.
TRE57167
0.0115
需要6片
1)
前油封
TAR49025
2)
后油封
TRE520036
3)
曲轴,齿轮
TR104587
4)
曲轴
TRE535300
(1)
TRE534314
(2)
5)
齿环
TR28811
6)
后齿轮
TR63326
1)
密封圈维修包
TRE506220
2)
衬垫套
TRE506222
3)
气缸垫
TRE55475
4)
机油底壳垫圈
TR71918
(3)
1)
连杆衬套
TR74008
x6
2)
连杆螺栓
TR66452
x12
(4)
TR501035
x12
(4)
3)
凸轮轴衬套
TR87561
x4
4)
连杆
TRE53154
(10)
TRE535555
(11)
1)
凸轮轴塞
TR82007
2)
机油冷却器
TAR55394
3)
挺柱
TR110126
x12
4)
紧张轮
TRE518097
(9)
TRE68715
(9)
TRE57498
(9)
1)
水泵
TRE521502
TRE521503
(12)
2)
O型圈安装组件
TRE509463

阀门部分

进气门
TR84618
Std.
TR93308
0.003
TR93312
0.015
排气门
TR84619
Std.
TR93311
0.003
TR93313
0.015
1)
插入阀:进气
TR121193
Std.
2)
插入阀:排气
TR119132
Std.
1)
阀盖
TT20129
2)
气门锁夹
TT20077
3)
屏蔽阀
TR102882
x6
(5)
TR501640
x6
(6)
1)
弹簧阀
TR91822
1)
节温器
TAR48675
180° F
2)
节温器外壳密封
TR136063
凸轮轴衬套
TRE60622
1)
油压传感器
TRE167207
(9)
2)
水温传感器
TRE52722
(9)
3)
曲轴传感器
TRE519144
(9)

(1)用螺旋油泵驱动齿轮。 不要与HPCR燃油系统一起使用。
(2)带直油泵传动齿轮。
(3)用铝油盘使用TR49377(RE504822)。
(4)使用TR66452杆式螺栓和机器分体式连杆,并使用带断裂分体式连杆的TR501035杆式螺栓。
(5)发动机ESN 199,999及以下。 仅适用于Exaust Valves。
(6)发动机ESN 200,000及以上。 仅适用于Exaust Valves。
(7)发动机ESN 199,999及以下。
(8)发动机ESN 200,000及以上。
(9)检查应用程序是否正确使用。
(10)机器分体连杆。 使用棒螺栓TR66452。
(11)破裂的分裂连杆。 使用棒螺栓TR501035。
(12)高流量。
(13)与断裂分体连杆一起使用。

美国强鹿JOHN DEERE柴油发电机常见型号配件:
3029DF128、4039DF008、4045TF258、6068TF158、6068TF258、6068HF158、6068HF258、6081HF001A、6081HF001B、6125HF070A、6125HF070B,6125HF070C。5030HF270A 、6059TF005、6135H458。4045DFM70, 4045TFM75, 6068TFM75, 6068TFM76(20mar01) 04-150-28 powertech? 8.1 l diesel engines — base engine 032001 pn=390 observable diagnostics&tests 04 150 29 dpsg,rg40854,17 –19–25nov98–1/1 test turbocharger wastegate actuator rg9728 –un–04dec98 a—actuator fitting b—actuator rod 1. check hose to wastegate actuator for kinks and cracks. replace if damaged. 2. disconnect hose from wastegate actuator. 3. connect a regulated air source to actuator fitting (a). 4. vary pressure to wastegate actuator depending on engine model number: wastegate actuator pressure specification engine model number pressure applied to actuator 6081at001 144.28 kpa (14.4 bar) (20.92 psi) 6081hdw04 144.28 kpa (14.4 bar) (20.92 psi) 6081hdw05 144.28 kpa (14.4 bar) (20.92 psi) 6081hdw01 184.83 kpa (18.5 bar) (26.8 psi) 6081ht001 193.10 kpa (19.3 bar) (28.0 psi) actuator rod (b) should move in&out freely as pressure is varied. if rod does not move freely, check wastegate adjustment. see adjust turbocharger wastegate actuator later in this group. ctm86 (20mar01) 04-150-29 powertech? 8.1 l diesel engines — base engine 032001 pn=391 observable diagnostics&tests 04 150 30 dpsg,rg40854,18 –19–25nov98–1/1 adjust turbocharger wastegate actuator rg9084 –un–16mar98 a—jam nut b—rod end c—retainer clip d—bypass lever 1. loosen jam nut (a). disconnect hose&pressurize actuator to specified pressure for application being used. hold pressure to particular application’s calibration pressure. wastegate actuator pressure specification engine model number pressure applied to actuator 6081at001 144.28 kpa (14.4 bar) (20.92 psi) 6081hdw04 144.28 kpa (14.4 bar) (20.92 psi) 6081hdw05 144.28 kpa (14.4 bar) (20.92 psi) 6081hdw01 184.83 kpa (18.5 bar) (26.8 psi) 6081ht001 193.10 kpa (19.3 bar) (28.0 psi) 2. push bypass lever (d) as far as possible toward the actuator&apply pressure to keep lever in that position. important: twisting/forcing the entire rod in or out will change the calibration, causing damage to engine from overboost. 3. turn rod end (b) in either direction until rod eye can be slipped over bypass lever pin. loosen rod end an additional half turn, install onto pin&secure with retainer clip (c). release pressure on actuator. 4. pressurize the actuator to pressure depending on application. measure the end play with a dial indicator, moving the bypass assembly back&forth in a direction perpendicular to the actuator rod. end play should be within specifications listed. if necessary to adjust, set end play at 0.5 mm (0.020 in.). 5. vary pressure in a range around pressure specification a few times to verify smooth&free operation of the bypass assembly. 6. attach hose to actuator&secure with hose clamp. ctm86 (20mar01) 04-150-30 powertech? 8.1 l diesel engines — base engine 032001 pn=392 section 05 tools&other materials contents page page group 170—repair tools&other materials group 190—dealer fabricated service tools group 020 — cylinder head&valves how to make tools   05-190-1 essential tools s. n. ( —199,999)  05-170-1 dfrg3—cylinder liner holding fixture   05-190-1 group 020 — cylinder head&valves service equipment&tools s.n. ( —199,999)  05-170-4 group 020 — cylinder head&valves other materials s. n. ( —199,999)   05-170-5 group 021 — cylinder head&valves s. n. (200,000— ) essential tools  05-170-6 group 021 — cylinder head&valves s. n. (200,000— ) service equipment&tools      05-170-9 05 group 021 — cylinder head&valves s. n. (200,000— ) other materials   05-170-10 group 030 — cylinder block, liners, pistons,&rods essential tools  05-170-10 group 030 — cylinder block, liners, pistons,&rods other materials   05-170-14 group 040 — crankshaft, main bearings and flywheel essential tools  05-170-15 group 040 — crankshaft, main bearings and flywheel service equipment and tools      05-170-20 group 040 — crankshaft, main bearings and flywheel other materials   05-170-21 group 050 — camshaft&timing gear train essential tools   05-170-21 group 050 — camshaft&timing gear train other materials   05-170-26 group 060 — lubrication system other materials      05-170-26 group 070 — cooling system essential tools      05-170-27 group 070 — cooling system other materials      05-170-27 group 080 — air intake&exhaust system essential tools   05-170-28 group 080 — air intake&exhaust system other materials   05-170-29 group 100 — starting&charging systems essential tools   05-170-29 group 180—diagnostic service tools base engine diagnostic tools  05-180-1 ctm86 (20mar01) 05-1 powertech? 8.1 l diesel engines — base engine 032001 pn=1 contents 05 ctm86 (20mar01) 05-2 powertech? 8.1 l diesel engines — base engine 032001 pn=2 group 170 repair tools&other materials rg41183,0000008 –19–03jan01–1/13 group 020 — cylinder head&valves essential tools s. n. ( —199,999) note: order tools according to information given in the u.s. servicegard? catalog/from the european microfiche tool catalog (mtc). servicegard is a trademark of deere & company 05 170 1 rg41183,0000008 –19–03jan01–2/13 rg7056 –un–05dec97 jdg820 rg5068 –un–05dec97 jde81-4 flywheel turning tool    jdg820 used to rotate engine to check damper radial runout and time engine. jde81-1 may be used also if jdg820 is not available. timing pin       jde81-4 lock engine at tdc when timing valve train, adjusting valve clearance,&installing fuel injection pump. use with jdg820, jde81-1 flywheel turning tools. rg41183,0000008 –19–03jan01–3/13 rg6246 –un–05dec97 d17526ci/d17527ci dial indicator    (english, in.) d17526ci/(metric, mm) d17527ci use with jdg451 to measure valve recess&cylinder liner height-to-cylinder block top deck. ctm86 (20mar01) 05-170-1 powertech? 8.1 l diesel engines — base engine 032001 pn=395 continued on next page repair tools&other materials rg41183,0000008 –19–03jan01–4/13 rg5061 –un–05dec97 d01168aa spring compression tester    d01168aa test valve spring compression. 05 170 2 rg41183,0000008 –19–03jan01–5/13 rg5062 –un–05dec97 d05058st valve inspection center    d05058st check valves for out-of-round. rg41183,0000008 –19–03jan01–6/13 rg5063 –un–05dec97 d172024br end brush       d17024br clean valve seat&bores. rg41183,0000008 –19–03jan01–7/13 rg5064 –un–05dec97 jt05949 valve guide knurler kit    jt05949 knurl valve guides. ctm86 (20mar01) 05-170-2 powertech? 8.1 l diesel engines — base engine 032001 pn=396 continued on next page repair tools&other materials rg41183,0000008 –19–03jan01–8/13 rg5071 –un–05dec97 jde41296 valve seat puller   jde41296 remove valve seats. 05 170 3 rg41183,0000008 –19–03jan01–9/13 rg5065 –un–05dec97 jde7 rg5240 –un–05dec97 jdg605 valve seat pilot driver    jde7 install replacement valve seat inserts. use with jdg605. valve seat installer    jdg605 install intake&exhaust valve seat inserts. use with jde7. rg41183,0000008 –19–03jan01–10/13 rg5099 –un–23aug88 d17030br nozzle threads cleaning brush    d17030br used to clean nozzle threads in cylinder head. ctm86 (20mar01) 05-170-3 powertech? 8.1 l diesel engines — base engine 032001 pn=397 continued on next page repair tools&other materials rg41183,0000008 –19–03jan01–11/13 rg5100 –un–05dec97 jdf5 tap       jdf5 used to restore nozzle threads in cylinder head. 05 170 4 rg41183,0000008 –19–03jan01–12/13 rg5612 –un–12apr90 jdg609 nozzle seat reamer    jdg609 used to clean carbon from nozzle seats in cylinder head. rg41183,0000008 –19–03jan01–13/13 rg5100 –un–05dec97 jdg681a tap       jdg681a used to restore threaded holes in cylinder block for cylinder head cap screws. rg41183,0000009 –19–03jan01–1/5 group 020 — cylinder head&valves service equipment&tools s. n. ( —199,999) note: order tools according to information given in the u.s. servicegard? catalog/from the european microfiche tool catalog (mtc). some tools may be available from a local supplier. servicegard is a trademark of deere & company ctm86 (20mar01) 05-170-4 powertech? 8.1 l diesel engines — base engine 032001 pn=398 continued on next page repair tools&other materials rg41183,0000009 –19–03jan01–2/5 valve spring compres***    jde138 compress valve springs when removing&installing valves. rg41183,0000009 –19–03jan01–3/5 precision “bevelled edge” straightedge    d05012st check cylinder head flatness. rg41183,0000009 –19–03jan01–4/5 eccentrimeter    d11010kw measure valve seat-to-stem runout. 05 170 5 rg41183,0000009 –19–03jan01–5/5 heavy-duty seat grinder set   jt05893 grind valve seats. rg41183,000000a –19–03jan01–1/1 group 020 — cylinder head&valves other materials s. n. ( —199,999) number name use ar44402 (u.s.) valve stem lubricant lubricate valve stems. ar31790 (u.s.) scotch-grip? plastic adhesive rocker arm cover gasket. pt569 (u.s.) never-seez? compound turbocharger-to-exhaust manifold cap screws. scotch-grip is a registered trademark of 3m co. never-seez is a registered trademark of emhart chemical group. ctm86 (20mar01) 05-170-5 powertech? 8.1 l diesel engines — base engine 032001 pn=399 repair tools&other materials rg41165,0000013 –19–12oct00–1/11 group 021 — cylinder head&valves s. n. (200,000— ) essential tools note: order tools according to information given in the u.s. servicegard? catalog/from the european microfiche tool catalog (mtc). servicegard is a trademark of deere & company 05 170 6 rg41165,0000013 –19–12oct00–2/11 rg7056 –un–05dec97 jdg820 rg5068 –un–05dec97 jde81-4 flywheel turning tool    jdg820 used to rotate engine to check damper radial runout and time engine. jde81-1 may be used also if jdg820 is not available. timing pin       jde81-4 lock engine at tdc when timing valve train, adjusting valve clearance,&installing fuel injection pump. use with jdg820, jde81-1 flywheel turning tools. rg41165,0000013 –19–12oct00–3/11 rg6246 –un–05dec97 d17526ci/d17527ci dial indicator    (english, in.) d17526ci/(metric, mm) d17527ci use with jdg451 to measure valve recess&cylinder liner height-to-cylinder block top deck. ctm86 (20mar01) 05-170-6 powertech? 8.1 l diesel engines — base engine 032001 pn=400 continued on next page repair tools&other materials rg41165,0000013 –19–12oct00–4/11 rg5061 –un–05dec97 d01168aa spring compression tester    d01168aa test valve spring compression. 05 170 7 rg41165,0000013 –19–12oct00–5/11 rg5062 –un–05dec97 d05058st valve inspection center    d05058st check valves for out-of-round. rg41165,0000013 –19–12oct00–6/11 rg5063 –un–05dec97 d172024br end brush       d17024br clean valve seat&bores. rg41165,0000013 –19–12oct00–7/11 rg5064 –un–05dec97 jt05949 valve guide knurler kit    jt05949 knurl valve guides. ctm86 (20mar01) 05-170-7 powertech? 8.1 l diesel engines — base engine 032001 pn=401 continued on next page repair tools&other materials rg41165,0000013 –19–12oct00–8/11 rg5071 –un–05dec97 jde41296 valve seat puller   jde41296 remove valve seats. 05 170 8 rg41165,0000013 –19–12oct00–9/11 rg5065 –un–05dec97 jde7 rg5240 –un–05dec97 jdg605 valve seat pilot driver    jde7 install replacement valve seat inserts. use with jdg605. valve seat installer    jdg605 install intake&exhaust valve seat inserts. use with jde7. rg41165,0000013 –19–12oct00–10/11 rg5099 –un–23aug88 d17030br nozzle threads cleaning brush    d17030br used to clean electronic injector bore. ctm86 (20mar01) 05-170-8 powertech? 8.1 l diesel engines — base engine 032001 pn=402 continued on next page repair tools&other materials rg41165,0000013 –19–12oct00–11/11 rg5100 –un–05dec97 jdg681a tap       jdg681a used to restore threaded holes in cylinder block for cylinder head cap screws. 05 170 9 rg41165,000001a –19–20oct00–1/5 group 021 — cylinder head&valves s. n. (200,000— ) service equipment&tools note: order tools according to information given in the u.s. servicegard? catalog/from the european microfiche tool catalog (mtc). some tools may be available from a local supplier. servicegard is a trademark of deere & company rg41165,000001a –19–20oct00–2/5 valve spring compres***    jde138 compress valve springs when removing&installing valves. rg41165,000001a –19–20oct00–3/5 precision “bevelled edge” straightedge    d05012st check cylinder head flatness. rg41165,000001a –19–20oct00–4/5 eccentrimeter    d11010kw measure valve seat-to-stem runout. rg41165,000001a –19–20oct00–5/5 heavy-duty seat grinder set   jt05893 grind valve seats. ctm86 (20mar01) 05-170-9 powertech? 8.1 l diesel engines — base engine 032001 pn=403 repair tools&other materials rg41165,000001b –19–20oct00–1/1 group 021 — cylinder head&valves s. n. (200,000— ) other materials number name use ar44402 (u.s.) valve stem lubricant lubricate valve stems. ty24311 (u.s.) thread lock&sealer (low electronic injector stud nuts cxty24311 (canadian) strength) 222 (loctite?) pt569 (u.s.) never-seez? compound turbocharger-to-exhaust manifold cap screws. 05 170 10 loctite is a trademark of loctite corp. never-seez is a registered trademark of emhart chemical group. rg41183,000000b –19–03jan01–1/14 group 030 — cylinder block, liners, pistons, and rods essential tools note: order tools according to information given in the u.s. servicegard? catalog/from the european microfiche tool catalog (mtc). servicegard is a trademark of deere & company rg41183,000000b –19–03jan01–2/14 rg6246 –un–05dec97 d17526ci/d17527ci dial indicator    (english, in.) d17526ci/(metric, mm) d17527ci use with jdg451 to measure valve recess&cylinder liner height-to-cylinder block top deck. continued on next page ctm86 (20mar01) 05-170-10 powertech? 8.1 l diesel engines — base engine 032001 pn=404 repair tools&other materials rg41183,000000b –19–03jan01–3/14 rg7029 –un–05dec97 jdg451 piston&liner height gauge    jdg451 use with dial indicator to measure piston&liner heights above cylinder block. 05 170 11 rg41183,000000b –19–03jan01–4/14 rg5019 –un–05dec97 d01062aa, d01073aa,/kcd 10001 cylinder liner puller    d01062aa, d01073aa, or kcd10001 remove cylinder liners. rg41183,000000b –19–03jan01–5/14 rg5074 –un–07nov97 d17005br flexible cylinder hone    d17005br hone cylinder liners. rg41183,000000b –19–03jan01–6/14 rg5077 –un–07nov97 jde93 piston ring expander    jde93 remove&install piston rings. ctm86 (20mar01) 05-170-11 powertech? 8.1 l diesel engines — base engine 032001 pn=405 continued on next page repair tools&other materials rg41183,000000b –19–03jan01–7/14 rg5076 –un–23aug88 jde55 no. 1 ring groove wear gauge   jde55 check upper compression ring groove wear. 05 170 12 rg41183,000000b –19–03jan01–8/14 rg5076 –un–23aug88 jdg852 no. 2 ring groove wear gauge   jdg852 check lower compression ring groove wear. rg41183,000000b –19–03jan01–9/14 rg5078 –un–07nov97 jde98a connecting rod bushing service set    jde98a remove&install connecting rod bushings. set consists of jde98-1 cup (1), jde98-2 driver (2), jde98-3 pilot (3), jde98-4 driver (4), jde98-5 driver (5), jde98-6 pilot (6), jde98-7 driver (7), jde98-8 cup (8), jde98-9 pilot (9), jde98-10 bushing remover (10)&std36104 forcing screw. continued on next page ctm86 (20mar01) 05-170-12 powertech? 8.1 l diesel engines — base engine 032001 pn=406 repair tools&other materials rg41183,000000b –19–03jan01–10/14 rg5079 –un–07nov97 jdg337 connecting rod bushing service set    jdg337 use with jde98a bushing service set to remove and install connecting rod bushings. 05 170 13 rg41183,000000b –19–03jan01–11/14 rg5075 –un–07nov97 d17015br o-ring groove cleaning brush    d17015br clean cylinder liner o-ring groove in block. rg41183,000000b –19–03jan01–12/14 rg5100 –un–05dec97 jdg681 tap       jdg681 used to restore threaded holes in cylinder block for cylinder head cap screws. continued on next page ctm86 (20mar01) 05-170-13 powertech? 8.1 l diesel engines — base engine 032001 pn=407 repair tools&other materials rg41183,000000b –19–03jan01–13/14 rg5031 –un–05dec97 jde96 piston ring compres榆林johndeere约翰迪尔强鹿柴油发动机燃油泵RE533095哪家好,陇南JohnDeere喷油器O型圈RE528349市场报价,张掖约翰迪尔3029DF128柴油机配件厂家价格,鹤岗JOHNDEERE强鹿6068TF275配件公司,新余约翰迪尔6068柴油机加大主轴瓦代理,保山约翰迪尔气门弹簧RE516486哪里买,包头强鹿排气门R84619市场报价,邢台约翰迪尔6068柴油机油泵市场报价,淮北约翰迪尔集材机柴油发动机配件代理商,   jde96 compress rings while installing pistons. 05 170 14 rg41183,000000b –19–03jan01–14/14 rg5698 –un–05dec97 jt05993 torque angle gauge    jt05993 used to torque-turn flanged-head cylinder head and connecting rod cap screws. rg41183,000000c –19–03jan01–1/1 group 030 — cylinder block, liners, pistons, and rods other materials number name use plastigage? determine connecting rod bearing-to-journal oil clearance. ar54749 (u.s.) soap lubricant coat o-rings on cylinder liners. plastigage is a registered trademark of dana corp. ctm86 (20mar01) 05-170-14 powertech? 8.1 l diesel engines — base engine 032001 pn=408 repair tools&other materials rg41183,000000d –19–03jan01–1/13 group 040 — crankshaft, main bearings and flywheel essential tools note: order tools according to information given in the u.s. servicegard? catalog/from the european microfiche tool catalog (mtc). servicegard is a trademark of deere & company 05 170 15 rg41183,000000d –19–03jan01–2/13 rg6214 –un–05dec97 jdg719 seal puller adapter    jdg719 used with a standout metal screw, jde38-2 shank, and jde38-3 slide handle to remove front crankshaft oil seal with timing gear cover installed. also used to remove rear crankshaft oil seal with seal housing installed. rg41183,000000d –19–03jan01–3/13 rg5106 –un–05dec97 jdg476 (85) seal&wear sleeve installer    jdg476 (85) used to simultaneously install the new teflon unitized oil seal&wear sleeve on the rear crankshaft flange. set consists of jdg477 (85) pilot&jdg478 driver. also use with jdg796 alignment tool to install rear oil seal housing, eliminating need for dial indicator to measure runout. continued on next page ctm86 (20mar01) 05-170-15 powertech? 8.1 l diesel engines — base engine 032001 pn=409 repair tools&other materials rg41183,000000d –19–03jan01–4/13 rg7056 –un–05dec97 jdg820 flywheel turning tool    jdg820 used to rotate engine to check damper radial runout and time engine. jde81-1 may be used also if jdg820 is not available. 05 170 16 rg41183,000000d –19–03jan01–5/13 rg6429 –un–05dec97 jdg787 thread protector    jdg787 used with jdg721 hub puller kit to remove vibration damper puller assembly. tool may be used with any puller set where limited space makes it difficult to use puller without a thread protector. continued on next page ctm86 (20mar01) 05-170-16 powertech? 8.1 l diesel engines — base engine 032001 pn=410 repair tools&other materials rg41183,000000d –19–03jan01–6/13 rg5763 –un–05dec97 jdg721 hub puller kit       jdg721 used with jdg787 thread protector to remove vibration damper pulley assembly. 05 170 17 rg41183,000000d –19–03jan01–7/13 rg6428 –un–05dec97 jdg786 front wear sleeve puller    jdg786 used to remove front crankshaft wear sleeve with timing gear cover installed. rg41183,000000d –19–03jan01–8/13 rg5508 –un–05dec97 jde3 front wear sleeve installer set    jde3 install front crankshaft wear sleeve. ctm86 (20mar01) 05-170-17 powertech? 8.1 l diesel engines — base engine 032001 pn=411 continued on next page repair tools&other materials rg41183,000000d –19–03jan01–9/13 rg6215 –un–05dec97 jdg720a seal protector    jdg720a used to install front crankshaft oil seal with timing gear cover installed. set consists of jdg720-1 forcing screw, jdg720-2 seal protector, jdg720-5 seal installer and jdg720-4 ring (500 series engines). 05 170 18 rg41183,000000d –19–03jan01–10/13 rg6457 –un–05dec97 jdg790 rear wear sleeve puller kit    jdg790 used to remove rear wear sleeve with oil seal housing installed on series 400, 450,&500 engines. set consists of 219469 hose clamp (series 500), jdg790-1 collet halves (series 400/450), 35945 forcing screw, jdg790-2 pulling plate (series 400/450/500), 13876 retainer clip (series 400/450/500, 215177 shaft protector (series 400/450/500), jdg790-3 collet halves (series 500), 19311 hose clamp (series 400/450). continued on next page ctm86 (20mar01) 05-170-18 powertech? 8.1 l diesel engines — base engine 032001 pn=412 repair tools&other materials rg41183,000000d –19–03jan01–11/13 rg8521 –un–20may98 jdg1069 main bearing cap puller/installer    jdg1069 use to remove&install the main bearing caps. due to wider bearing surface, these caps are installed with an increased interference fit. 05 170 19 rg41183,000000d –19–03jan01–12/13 rg5108 –un–05dec97 jdh7 gear driver       jdh7 install crankshaft drive gear. rg41183,000000d –19–03jan01–13/13 rg6590 –un–05dec97 jdg796 oil seal housing alignment tool    jdg796 use with crankshaft rear oil seal housing casting numbers r115050&r125027. ctm86 (20mar01) 05-170-19 powertech? 8.1 l diesel engines — base engine 032001 pn=413 repair tools&other materials rg41183,000000e –19–03jan01–1/3 group 040 — crankshaft, main bearings and flywheel service equipment&tools note: order tools according to information given in the u.s. servicegard? catalog/from the european microfiche tool catalog (mtc). some tools may be available from a local supplier. servicegard is a trademark of deere & company 05 170 20 rg41183,000000e –19–03jan01–2/3 slide hammer    d01300aa use with jdg1069 to remove main bearing caps. rg41183,000000e –19–03jan01–3/3 puller1       d01251aa remove crankshaft gear. 1part of d01047aa 17-1/2&30 ton puller set ctm86 (20mar01) 05-170-20 powertech? 8.1 l diesel engines — base engine 032001 pn=414 repair tools&other materials 05 170 21 rg41183,000000f –19–03jan01–1/1 group 040 — crankshaft, main bearings and flywheel other materials number name use ty15969 (u.s.) retaining compound (maximum used to coat id of new wear sleeve. ty9479 (canadian) strength) 680 (loctite?) plastigage? check main bearing-to-crankshaft journal oil clearance during engine disassembly. t43512 (u.s.) thread lock&sealer (medium coat threads of flywheel mounting ty9473 (canadian) strength) cap screws. 242 (loctite?) ty6333/ty6347 (u.s.) high temperature grease used to install timing gear cover tabs. brake kleen/ignition cleaner remove sealant from crankshaft flange. loctite is a registered trademark of loctite corp. plastigage is a registered trademark of dana corp. dpsg,ouo1004,838 –19–27apr99–1/11 group 050 — camshaft&timing gear train essential tools note: order tools according to information given in the u.s. servicegard? catalog/from the european microfiche tool catalog (mtc). servicegard is a trademark of deere & company continued on next page ctm86 (20mar01) 05-170-21 powertech? 8.1 l diesel engines — base engine 032001 pn=415 repair tools&other materials dpsg,ouo1004,838 –19–27apr99–2/11 rg6429 –un–05dec97 jdg787 thread protector    jdg787 used with jdg721 hub puller kit to remove vibration damper puller assembly. 05 170 22 dpsg,ouo1004,838 –19–27apr99–3/11 rg5763 –un–05dec97 jdg721 hub puller kit       jdg721 used with jdg787 thread protector to remove vibration damper pulley assembly on some engine applications. continued on next page ctm86 (20mar01) 05-170-22 powertech? 定西强鹿RE60005气门弹簧座信息,江门JohnDeere柴油机止推轴承瓦RE529320价格,江门约翰迪尔装载机发动机连杆批发,三沙Johndeere工业发动机配件信息,常德johndeere约翰迪尔强鹿曲轴多少钱,克孜勒苏约翰迪尔柴油发电机组进排气门厂家供应,佛山约翰迪尔发动机止推片批发价,常德强鹿柴滤RE529644厂家价格,白山约翰迪尔强鹿柴油滤芯re541922哪里买,赤峰约翰迪尔4039DF008机油泵哪家好,基隆JohnDeere曲轴减震皮带轮总成哪家好,吕梁johndeere约翰迪尔强鹿柴油发动机缸垫R116516价格行情,百色约翰迪尔连杆R51727厂家供应,襄阳强鹿6081柴油机水温传感器批发,梧州约翰迪尔强鹿4045柴油机进气门批发,宁波强鹿平衡轴铜套TR115299批发价,牡丹江约翰迪尔柴油机止推轴承一级代理,长春强鹿柴油发动机活塞缸套组件RE64509厂家价格,济南JohnDeere燃油输油泵RE68345供货商,台州约翰迪尔联合收割机发动机副线束多少钱,滁州约翰迪尔7M-2204拖拉机发动机配件价格,张家口约翰迪尔3029RE27360主轴瓦厂家供应,沧州JohnDeere发动机活塞环AR65507批发,菏泽强鹿柴油机柴滤RE532952市场报价,黔西南强鹿6090柴油发动机衬垫套公司,景德镇强鹿排气门R90692一级代理,合肥强鹿输油泵RE517230哪家买,黔南约翰迪尔活塞RE30250批发商,绵阳JOHNDEER空气滤清器RE503852代理,昆明强鹿6081发动机止推轴承瓦厂家供应,广元约翰迪尔空气滤清器RE16808厂家价格,北海约翰迪尔柴油发动机机油滤清器外壳一级代理,普洱美国原装6068机油滤清器RE504836厂家供货,新疆强鹿RE500516飞轮一级代理,南昌强鹿6068柴油机凸轮随动件供货商,丽水强鹿柴油发动机缸盖市场报价,商洛JohnDeere发电机配件公司,哈尔滨强鹿柴油机启动马达RE515843的价格,梅州两轮驱动拖拉机4045柴油发动机配件供货商,大兴安岭约翰迪尔拖拉机发动机出油阀厂家供货,菏泽JOHNDEERE强鹿4045TF258配件诚信推荐,湖北强鹿柴油发动机主线束多少钱,深圳JohnDeere空气加热器厂家供货,黑河约翰迪尔柴油机T20034凸轮轴下衬套哪家好,四平约翰迪尔强鹿4045柴油机水泵垫片找哪家,池州强鹿修理包RE527551厂家供货,平凉johndeere约翰迪尔强鹿柴油机缸体批发价,承德约翰迪尔发动机配件价格行情,鸡西强鹿柴油发电机组四配套信息,抚州强鹿6081发动机连杆瓦多少钱,庆阳约翰迪尔3029柴油机连杆瓦市场报价,济宁强鹿RE27349连杆瓦哪家好,榆林强鹿内部修理套件TIK532715代理商,抚州强鹿柴油发动机凸轮轴代理,宜宾强鹿R107731气门顶杆找哪家,绵阳JOHNDEER空气滤清器RE503852信息,绍兴约翰迪尔3029柴油发动机滤清器RE60021厂家批发,运城JOHNDEERE强鹿6081HF001配件代理商,南京JohnDeere3029衬垫套哪家买,8.1 l diesel engines — base engine 032001 pn=416 repair tools&other materials 05 170 23 dpsg,ouo1004,838 –19–27apr99–4/11 rg7056 –un–05dec97 jdg820 rg5068 –un–05dec97 jde81-4 flywheel turning tool    jdg820 used to rotate engine to check damper radial runout and time engine. jde81-1 may be used also if jdg820 is not available. timing pin       jde81-4 lock engine at tdc when timing valve train, adjusting valve clearance,&installing fuel injection pump. use with jdg820&jde81-1 flywheel turning tools. dpsg,ouo1004,838 –19–27apr99–5/11 rg10060 –un–10jun99 d01209aa slide hammer&attachment   d01209aa used to remove auxiliary drive idler bushing/spacer from timing gear cover. dpsg,ouo1004,838 –19–27apr99–6/11 rg5073 –un–05dec97 d15001nu magnetic follower holder kit    d15001nu hold cam followers when removing/installing camshaft. continued on next page ctm86 (20mar01) 05-170-23 powertech? 8.1 l diesel engines — base engine 032001 pn=417 repair tools&other materials dpsg,ouo1004,838 –19–27apr99–7/11 rg5336 –un–07nov97 jdg602 camshaft bushing adapter set    jdg602 used with jde6 camshaft bushing service set to service camshaft bushings. jdg602 consists of jdg603 driver and jdg604 receiver cup. 05 170 24 dpsg,ouo1004,838 –19–27apr99–8/11 r26149n –un–04dec97 jde6 camshaft bushing service set   jde6 used with jdg602 camshaft bushing adapter set to service camshaft bushings. jdg405 service set may be used along with jdg606 adapter set if jde6 is not available. dpsg,ouo1004,838 –19–27apr99–9/11 rg4228 –un–05dec97 jdg405 camshaft bushing service set   jdg405 used with jdg606 camshaft bushing adapter set and d102999aa slide hammer to service camshaft bushings. jde6 service set may be used along with jdg602 adapter set if jdg405 in not available. ctm86 (20mar01) 05-170-24 powertech? 8.1 l diesel engines — base engine 032001 pn=418 continued on next page repair tools&other materials dpsg,ouo1004,838 –19–27apr99–10/11 rg5337 –un–07nov97 jdg606 camshaft bushing adapter set    jdg606 used with jdg405 camshaft bushing service set and d01299aa slide hammer to service camshaft bushings. jdg606 consists of jdg607 driver&jdg608 pilot. 05 170 25 dpsg,ouo1004,838 –19–27apr99–11/11 rg78104h1 –un–15dec88 d01299aa slide hammer    d01299aa used with jdg405 camshaft bushing service set and jdg606 camshaft bushing adapter set to service camshaft bushings. ctm86 (20mar01) 05-170-25 KEY PART NO. PART NAME QTY OR PUMP DATE F F F REMARKS
1 R63059 SPRING 1 X
2 R63060 PISTON 1 X
3 R67886 O-RING 1 X
4 R67885 HOUSING 1 X
5 R63063 SCREW 2 X
6 R54880 LOCK WASHER 2 X
7 R62104 VALVE 1 X
8 R62105 PIN FASTENER 1 X
9 R26373 SPRING 1 X
10 R62107 WASHER 2 X
11 R62106 SCREW 1 X
KEY PART NO. PART NAME QTY SERIAL NO. F F F REMARKS
1 RE65265 HAND PRIMER 1 X X (SUB FOR RE48048)
2 R54025 WASHER 1 X X
3 R26448 O-RING 2 X X
4 RE10258 ELBOW FITTING 2 X (M14 X 5/8 IN.)
RE34128 ELBOW FITTING 2 X
5 R67879 GASKET 1 X X
6 RE46375 FUEL PUMP 1 X (ROBERT BOSCH)
RE46252 FUEL PUMP 1 X (ROBERT BOSCH)
7 R93008 WASHER 1 X
R53899 WASHER 1 X
8 R83490 FITTING 1 X X
KEY PART NO. PART NAME QTY SERIAL NO. F F F REMARKS
1 RE47431 FUEL LINE 1 X NO. 6
2 RE47430 FUEL LINE 1 X NO. 5
3 RE47429 FUEL LINE 1 X NO. 4
4 R120185 BOLT 5 X
R58186 CLAMP 10 X
R120181 STRAP 5 X
R120182 STRAP 5 X
5 RE47428 FUEL LINE 1 X NO. 3
6 RE47427 FUEL LINE 1 -080424 X
RE502930 FUEL LINE 1 080425- X NO. 2, (SUB FOR RE47427)
7 RE47426 FUEL LINE 1 -080424 X
RE502929 FUEL LINE 1 080425- X NO. 1, (SUB FOR RE47426)
8 R120186 BOLT 2 X
R71212 CLAMP 1 X
R120183 STRAP 1 X
R120184 STRAP 1 X
R59297 HALF CLAMP 2 X
9 R59305 STRAP 1 X
R58186 CLAMP 1 X
R74030 CLAMP 1 X
R74804 CLAMP 1 X
R120186 BOLT 1 X
R120181 STRAP 1 X
R120182 STRAP 1 X
10 R120185 BOLT 1 X
R59297 HALF CLAMP 2 X
R120183 STRAP 2 X
11 RE55662 ABSORBER 1 X
12 24H1884 WASHER 1 X 13/32" X 13/16" X 0.120" 13/32" X
13/16" X 0.120"
13 19M7166 CAP SCREW 1 X M10 X 20 M10 X 20
14 RE64184 INJECTION NOZZLE 6 X (A) (ROBERT BOSCH)
R51603 O-RING 6 X
15 R84472 WASHER 6 X 7.360 X 18.160 X 2 MM (0.290" X 0.715"
X 0.079") 7.360 X 18.160 X 2 MM
(0.290" X 0.715" X 0.079")
16 R504057 O-RING 6 087550- X
17 RE501970 ADAPTER 6 087550- X
18 R79604 TUBE NUT 6 087550- X
19 R51937 TUBE NUT 1 X
20 AR85519 PLUG 1 X
21 RE500803 FUEL LINE 1 087550- X
22 R77551 O-RING 6 -087549 X
23 R87082 FITTING 6 -087549 X
24 R79604 TUBE NUT 6 -087549 X
25 R79605 WASHER 6 -087549 X
26 R79606 TEE FITTING 6 -087549 X
27 R51936 SEALING WASHER 11 -087549 X
28 RE15807 FUEL LINE 2 -087549 X
29 RE15808 FUEL LINE 2 -087549 X
30 RE36421 FUEL LINE 2 -087549 X
31 R97061 TEE FITTING 1 -087549 X
(A) 2 PINK DOTS
(2) POINT ROSE
(2) ROSAFARBENER PUNKT
(2) PUNTO ROSA
(2) PUNTO ROSADA
(2) ROSAFAERGAD PUNKT
