配件详情

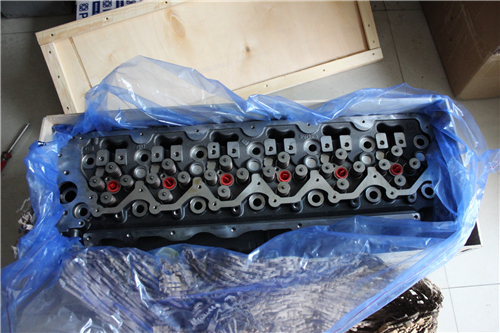

威尔信2006柴油发电机组配件CV67245汽缸盖、OE50588进气门、OE50118气门座圈、OE43070气门导管、OE52907摇臂组合
项目 零配件号码 最近的部分号码 描述
1 OE51592 2 CV67245 汽缸盖装备 -主修科目
25 OE51276 2 OE51276 密合垫 - 汽缸盖 U961005B
25 OE50116 2 OE50116 密合垫 - 汽缸盖 U961004B
26 OE52732 42 OE52732 螺拴
27 2 螺拴
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 OE51592 2 CV67245 CYLINDER HEAD KIT - MAJOR
25 OE51276 2 OE51276 GASKET - CYLINDER HEAD U961005B
25 OE50116 2 OE50116 GASKET - CYLINDER HEAD U961004B
26 OE52732 42 OE52732 BOLT
27 2 BOLT
项目 零配件号码 最近的部分号码 描述
2 OE50117 1 OE50117 汽缸盖装备 -主修科目
13 OE50588 3 OE50588 进气门
14 OE42266 3 OE42266 位子
15 CV68907 3 CV68907 气门弹簧外部的
15 OE42300 3 CV68907 气门弹簧外部的
16 OE30935 6 OE30935 位子
17 OE2582 6 OE2582 气门筒夹
18 OE50589 3 OE50589 排气气门
19 OE42266 3 OE42266 位子
20 OE2582 6 OE2582 气门筒夹
21 CV68908 3 CV68908 气门弹簧内部
21 OE42301 3 CV68908 气门弹簧内部
22 OE5718 6 OE5718 密封 - O 的圈
23 CV68907 3 CV68907 气门弹簧外部的
23 OE42300 3 CV68907 气门弹簧外部的
24 CV68908 3 CV68908 气门弹簧内部
24 OE42301 3 CV68908 气门弹簧内部
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 OE50117 1 OE50117 CYLINDER HEAD KIT - MAJOR
13 OE50588 3 OE50588 INTAKE VALVE
14 OE42266 3 OE42266 SEAT
15 CV68907 3 CV68907 VALVE SPRING OUTER
15 OE42300 3 CV68907 VALVE SPRING OUTER
16 OE30935 6 OE30935 SEAT
17 OE2582 6 OE2582 VALVE COLLET
18 OE50589 3 OE50589 EXHAUST VALVE
19 OE42266 3 OE42266 SEAT
20 OE2582 6 OE2582 VALVE COLLET
21 CV68908 3 CV68908 VALVE SPRING INNER
21 OE42301 3 CV68908 VALVE SPRING INNER
22 OE5718 6 OE5718 SEAL - O RING
23 CV68907 3 CV68907 VALVE SPRING OUTER
23 OE42300 3 CV68907 VALVE SPRING OUTER
24 CV68908 3 CV68908 VALVE SPRING INNER
24 OE42301 3 CV68908 VALVE SPRING INNER
项目 零配件号码 最近的部分号码 描述
3 OE50118 3 OE50118 气门座圈
(3) OE50178 3 OE50178 气门座圈
4 OE49094 3 OE49094 气门座圈
(4) OE50149 3 OE50149 气门座圈
5 OE43070 3 OE43070 气门导管
6 OE46001 3 OE46001 气门导管
7 OE50207 3 OE50207 套筒
8 OE49978 3 OE49978 封闭砂条
9 ST33602 1 ST33602 栓塞
10 ST33606 5 ST33606 栓塞
11 ST33609 5 ST33609 栓塞
12 ST33613 4 ST33613 栓塞
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
3 OE50118 3 OE50118 INSERT
(3) OE50178 3 OE50178 INSERT
4 OE49094 3 OE49094 INSERT
(4) OE50149 3 OE50149 INSERT
5 OE43070 3 OE43070 VALVE GUIDE
6 OE46001 3 OE46001 VALVE GUIDE
7 OE50207 3 OE50207 SLEEVE
8 OE49978 3 OE49978 SEALING RING
9 ST33602 1 ST33602 PLUG
10 ST33606 5 ST33606 PLUG
11 ST33609 5 ST33609 PLUG
12 ST33613 4 ST33613 PLUG
项目 零配件号码 最近的部分号码 描述
1 OE52907 2 OE52907 摇臂组合
21 UF1569 12 UF1569 固正螺钉
26 OE42184 12 OE42184 PUSHROD
27 OE51590 12 OE51590 挺杆
28 OE51761 1 OE51761 油管
29 OE49346 3 OE49346 螺拴
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 OE52907 2 OE52907 ROCKER SHAFT ASSEMBLY
21 UF1569 12 UF1569 SETSCREW
26 OE42184 12 OE42184 PUSHROD
27 OE51590 12 OE51590 TAPPET
28 OE51761 1 OE51761 OIL PIPE
29 OE49346 3 OE49346 BOLT
项目 零配件号码 最近的部分号码 描述
2 OE50459/1 1 OE50459/1 摇臂 ASSY
4 OE50854 2 OE52906 托架
4 OE52906 2 OE52906 托架
5 UF1502 1 UF1502 螺拴
6 0920053 1 0920053 垫圈
7 OE50852 1 OE50852 托架
8 OE50853 3 OE50853 图钉
9 KB14169 2 OE52557 CIRCLIP
10 OE431 2 OE431 垫圈
11 OE429 2 OE429I 摇臂弹簧
12 OE42278 6 OE42278 摇臂组合
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 OE50459/1 1 OE50459/1 ROCKER SHAFT ASSY - MINOR
4 OE50854 2 OE52906 PEDESTAL
4 OE52906 2 OE52906 PEDESTAL
5 UF1502 1 UF1502 BOLT
6 0920053 1 0920053 WASHER
7 OE50852 1 OE50852 PEDESTAL
8 OE50853 3 OE50853 STUD
9 KB14169 2 OE52557 CIRCLIP
10 OE431 2 OE431 WASHER
11 OE429 2 OE429I ROCKER SHAFT SPRING
12 OE42278 6 OE42278 ROCKER ARM ASSEMBLY
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
13 OE28549 1 OE28549 BUSH
14 OE41699 1 OE41699 SCREW
15 OE42293 1 OE42293 LOCKNUT
项目 零配件号码 最近的部分号码 描述
1 OE51437 2 OE51437 汽缸盖盖
2 CV67896 2 CV67896 密合垫 -CYL。 冒口盖
3 32726535 6 32726535 螺帽
4 0920009 6 0920009 垫圈
5 33817132 6 密封
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 OE51437 2 OE51437 CYLINDER HEAD COVER
2 CV67896 2 CV67896 GASKET - CYL. HEAD COVER
3 32726535 6 32726535 NUT
4 0920009 6 0920009 WASHER
5 33817132 6 Check History SEAL
项目 零配件号码 最近的部分号码 描述
1 OE50326 1 OE50326 车桥
2 OE51293 1 OE51293 惰轮传动机构
8 OE2297 2 OE2297 合钉
9 UF1604 3 UF1604 固正螺钉
10 0920055 3 0920055 垫圈
11 OE2296 2 OE2296 圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 OE50326 1 OE50326 AXLE
2 OE51293 1 OE51293 IDLER GEAR
8 OE2297 2 OE2297 DOWEL
9 UF1604 3 UF1604 SETSCREW
10 0920055 3 0920055 WASHER
11 OE2296 2 OE2296 RING
