VOLVO工程机械用柴油发动机电子控制技术

由于柴油机具备高扭矩、高寿命、低油耗、低排放等特点 ,柴油机成为解决汽车及工程机械能源问题最现实和最可靠的手段。因此柴油机的使用范围越来越广 ,数量越来越多。同时对柴油机的动力性能、经济性能、控制废气排放和噪声污染的要求也越来越高。依靠传统的机械控制喷油系统已无法满足上述要求 ,也难以实现喷油量、喷油压力和喷射正时完全按最佳工况运转的要求。近年来 ,随着计算机技术、传感器技术及信息技术的迅速发展 ,使电子产品的可靠性、成本、体积等各方面都能满足柴油机进行电子控制的要求 ,并且电子控制燃油喷射很容易实现。

1：沃尔沃柴油机电子控制技术的要求

1.1沃尔沃柴油机高的喷射压力

为满足排放法规的要求 ,柴油喷射压力从 10MPa提高到 200MPa。如此高的喷射压力可明显改善柴油和空气的混合质量 ,缩短着火延迟期 ,使燃烧更迅速、更彻底 ,并且控制燃烧温度,从而降低废气排放。

1.2沃尔沃柴油机独立的喷射压力控制

1.3改善沃尔沃柴油机燃油经济性

用户对柴油机的燃油消耗率非常关注。高喷射压力、独立的喷射压力控制、小喷孔、高平均喷油压力等措施都能降低燃油消耗率 ,从而提高了柴油机的燃油使用经济性。

1.4沃尔沃柴油机独立的燃油喷射正时控制

喷射正时直接影响到柴油机活塞上止点前喷入汽缸的油量,决定着汽缸的峰值爆发压力和最高温度。高的汽缸压力和温度可以改善燃油使用经济性 ,但导致 NOX增加。而不依赖于转速和负荷的喷射正时控制能力 ,是在燃油消耗率和排放之间实现最佳平衡的关键措施。

1.5沃尔沃柴油机可变的预喷射控制能力

预喷射可以降低颗粒排放 ,又不增加 NOX排放 ,还可改善柴油机冷启动性能、降低冷态工况下白烟的排放 ,降低噪声 ,改

善低速扭矩。但是预喷射量、预喷射与主喷射之间的时间间隔在不同工况下的要求是不一样的。因此 ,具有可变的预喷射控制能力对柴油机的性能和排放十分有利。

1.6沃尔沃柴油机最小油量的控制能力

供油系统具有高喷射压力的能力与柴油机怠速所需要的小油量控制能力发生矛盾。当供油系统具有预喷射能力后将会使控制小油量的能力进一步降低。由于工程机械用柴油机的工况很复杂 ,怠速工况经常出现 ,而电喷柴油机容易实现最小油量控制。

1.7沃尔沃柴油机快速断油能力

喷射结束时必须快速断油 ,如果不能快速断油 ,在低压力下喷射的柴油就会因燃烧不充分而冒黑烟 ,增加 HC排放。电喷柴油机喷油器上采用的高速电磁开关阀很容易实现快速断油。

1.8降低驱动扭矩冲击载荷

燃油喷射系统在很高的压力下工作 ,既增加了驱动系统所需要的平均扭矩 ,也加大了冲击载荷。燃油喷射系统对驱动系统平稳加载和卸载的能力 ,是一种衡量喷射系统的标准。而电喷柴油机技术中的高压共轨技术则大大降低了驱动扭矩冲击载荷。

2：VOLVO沃尔沃柴油机组成

VOLVO工程机械用柴油发动机电子控制系统组成

传感器、电控单元、执行器。传感器是用来监控发动机上各部件及各系统的运行状况 ,并将数据传输给 ECU。

( 1)增压压力与温度 ;根据检测到进气压力与温度计算进气量为 ECU提供计算喷油量的数据。

( 2)燃油温度 :燃油温度的升高会影响发动机性能 ,温度高会降低柴油黏度 ,增加泄漏量需要加大供油量。

( 3)冷却液温度 :检测发动机温度提供为 ECU喷油正时修正的数据 ,并且为驾驶员提供发动机运行状况。

( 4)冷却液液位 :监测水箱水位变化。

( 5)发动机凸轮轴速度 :为 ECU提供点火正时信号。

( 6)发动机曲轴速度 :也称为发动机转速传感器 ,提供发动机转速信号。

( 7)机油压力 :监测发动机润滑系统运行状况 ,为驾驶员提供发动机信息。

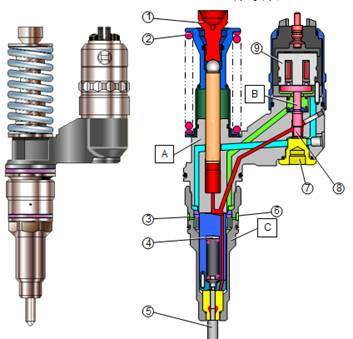

执行器根据电控单元所传输过来的电压信号来控制喷油正时与喷油量 ,在外部环境变化的情况下 ,E-ECU通过一系列传感器采集到的信息 ,经过计算对比分析 ,然后通过对喷油器电磁阀 其工作原理为 :发动机凸轮作用于单体泵挺杆 ,ECU将收集通电时间的长短和早晚来调整喷油量与喷油正时。 VOLVO工程的传感器信号分析处理后发出指令。使高速电磁铁控制阀闭合、机械用柴油发动机的执行器主要是有电磁阀的单体泵。结构和开启 ,在单体泵内形成高压 ,通过喷油器定时、定量将最佳雾化驱动方式。

其工作过程为 :当某缸需要喷油时 ,ECU向电磁阀提供 3.7V的电压 (注:当起动时电压可达 90V左右普通万用表无法测量 ),使电磁阀移动将进油道堵死使内部形成密闭空间 ,此时柱塞在凸轮轴的推动下向上移动 ,建立油压直至达到 220kg将喷油器打开向汽缸内喷射经雾化的燃油 ,工作完成。

另外 ,VOLVO工程机械用电控柴油机还包括对废气再循环阀、预热塞等执行机构进行控制 ,使柴油机运行状态达到最佳。
