强鹿燃油泵配件维修维护技术零件资料手册

John Deere约翰迪尔强鹿燃油泵配件维修维护技术零件资料手册

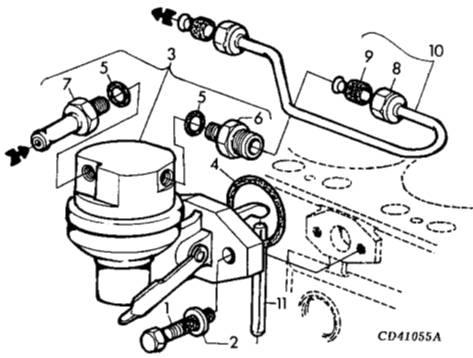

KEY PART NO. PART NAME QTY SERIAL NO. H H REMARKS

1 RE66298 CAP SCREW 2 X X WITH SEALANT

2 24M7055 WASHER 2 X X 8.400 X 16 X 1.600 MM

3 RE68345 FUEL PUMP 1 X X ASSY, INCL KEYS 4-7

4 R123273 O-RING 1 X X

5 R500271 O-RING 2 X X

6 R500270 UNION FITTING 1 X X M10 X 9/16"

7 R500269 FITTING 1 X X M10 X OD 8.5MM, (ALSO ORDER R500271)

8 R123594 NUT 2 X X 9/16"-24UNEF

9 R74012 SEALING WASHER 2 X X

10 RE60037 FUEL LINE 1 X X

11 R133405 PUSH ROD 1 X X

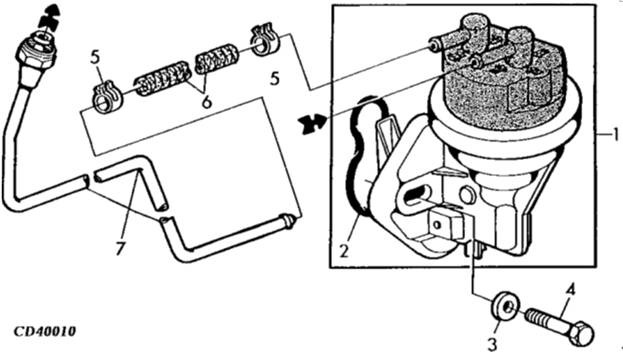

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 RE38009 FUEL PUMP 1 X 80 L/H-15 KPA (0.15 BAR) 2500 MIN-1 (21

GPH-2.1 PSI/2500 MIN-1)

2 T16318 O-RING 1 X

3 24H1136 WASHER 2 X 11/32" X 11/16" X 0.065"

4 19H2127 CAP SCREW 2 X 5/16" X 7/8"

5 R56101 CLIP 2 X

6 UN4660 HOSE 1 X LGTH 50MM

7 RE58915 FUEL LINE 1 X
