CaT C9.3 Diesel Engine Belt Tensioner 324-3218 Excavator 336f 336D2

1、 The "heart" of excavators - CaT C9.3 diesel engine
In the world of excavators, every component plays an indispensable role, but the most essential part is undoubtedly the engine, which is like the "heart" of the excavator, providing a continuous source of power for the entire equipment. For the classic excavators Caterpillar 336f and 336D2, the CaT C9.3 diesel engine is undoubtedly the "heart" of the project.

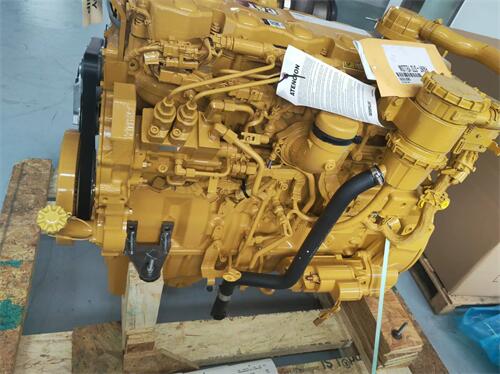

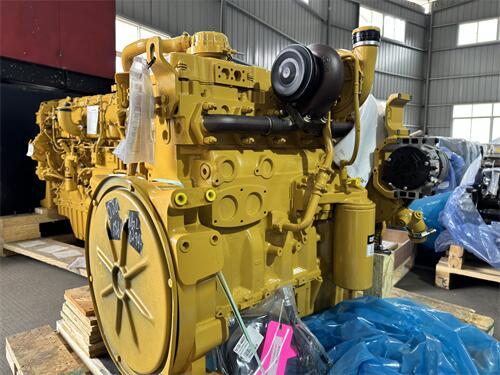

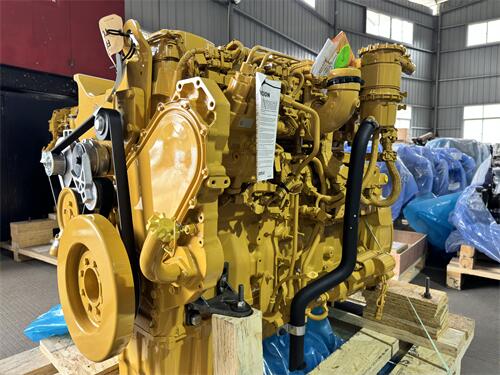

The CaT C9.3 diesel engine is renowned in the field of construction machinery for its outstanding performance and reliable quality. It has strong power output and can easily cope with various complex construction environments and high-intensity work tasks. Whether in large-scale mining operations that require excavating hard rocks or in urban infrastructure construction that requires transporting large amounts of soil, the CaT C9.3 diesel engine can stably output strong power, ensuring efficient operation of excavators.

This diesel engine also has excellent fuel economy. In the context of increasingly high energy costs, this characteristic is particularly important. It uses advanced fuel injection technology and optimized engine combustion system to enable full combustion of fuel, providing powerful power while minimizing fuel consumption, saving users a lot of operating costs.
Moreover, the durability of the CaT C9.3 diesel engine is also commendable. It adopts high-strength materials and precise manufacturing processes, and each component has undergone strict quality inspection, which can withstand long-term and high load work tests, reduce equipment maintenance frequency and downtime, and improve equipment efficiency and return on investment.
However, the stable operation of the engine relies on the coordinated cooperation of various components, among which there is a seemingly insignificant but crucial component, which is the belt tensioner 324-3218. Although it is not as eye-catching as an engine, it plays a crucial role in ensuring the normal operation of the engine, just like the joints of the human body, which are small but affect the overall movement of the body.

2、 Exploring Belt Tensioner 324-3218
（1） Appearance and Structure

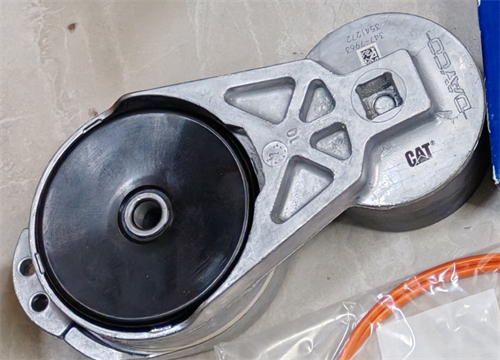

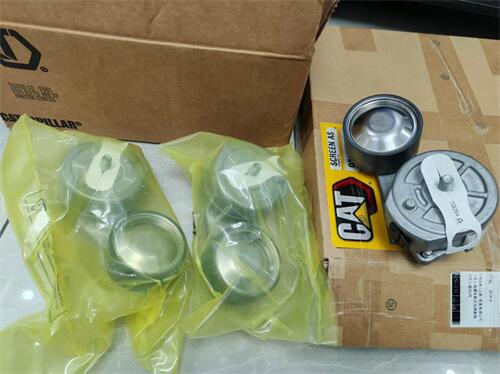

At first glance, the belt tensioner 324-3218 appears as a compact metal component, presenting an overall sturdy and durable texture. It mainly consists of key components such as tensioning wheels, spring devices, and connecting brackets. Tensioning wheels are usually made of high-strength wear-resistant materials, with a smooth surface and hard texture, and play a direct contact and guiding role in the transmission process of the belt. The connecting bracket is like its "skeleton", firmly connecting various components together and ensuring that the tensioner can be accurately installed in a specific position on the engine. And the spring device, like its "core power source", is cleverly designed inside to provide continuous and stable tension for the tensioning wheel.

（2） Working principle
During the operation of the CaT C9.3 diesel engine, the belt plays an important role in transmitting power. However, with prolonged use of the equipment and the influence of factors such as wear and heat on the belt itself, the belt will gradually become loose. At this point, the belt tensioner 324-3218 begins to play its crucial role.
When the belt becomes loose, the spring device inside the tensioner will push the tensioner wheel outward according to the preset elastic force. The tensioning wheel will tightly press onto the belt, thereby increasing the tension of the belt and restoring it to the appropriate level of tension. In this way, good contact and stable friction can be maintained between the belt and various transmission components of the engine, ensuring that power can be stably and efficiently transmitted from the engine to various working components.
For example, when an excavator is performing excavation operations at a construction site, the engine needs to output strong power to drive the movement of the excavator bucket. If the belt is loose, power will slip during transmission, causing the digging bucket to move slowly, weakly, or even fail to work properly. With the real-time adjustment of the belt tensioner 324-3218, it can always maintain the appropriate tension of the belt, ensuring that the power of the engine can be transmitted accurately and without error, allowing the excavator to complete the task stably and efficiently in various complex working conditions.

3、 Common faults and solutions
（1） Abnormal tension
Fault manifestation: The belt tensioner cannot provide appropriate tension, resulting in the belt being too loose or too tight. When the belt is too loose, slippage may occur. When the engine is running, a "squeaking" sound can be heard clearly between the belt and the pulley. At the same time, the power transmission efficiency decreases, and the working device of the excavator becomes sluggish and powerless; If the belt is too tight, it will bear excessive pressure, accelerate the wear of the belt, and may also cause additional load on the engine bearings and other components, resulting in abnormal vibration and noise during equipment operation.
Solution: Firstly, check whether the spring of the tensioner is deformed, broken, or has weakened elasticity. If there is a problem with the spring, it should be replaced with a new one in a timely manner to ensure that it can provide stable and appropriate tension. Secondly, check whether the rotation of the tensioning wheel is flexible. If the tensioning wheel becomes stuck due to long-term use, it will affect its adjustment of the belt tension. At this time, it is necessary to clean, lubricate or replace the tensioning wheel. In addition, it is necessary to check whether the installation position of the tensioner is correct. If there is any deviation, it should be readjusted and fixed to ensure that it can accurately tension the belt.

（2） Component wear and tear
Fault manifestation: During long-term operation, components such as tensioning wheels and connecting brackets are affected by the friction, impact force, and various complex working conditions of the belt, resulting in varying degrees of wear. After the tension wheel wears out, its surface will become uneven, resulting in poor contact between the belt and the tension wheel, further exacerbating the wear of the belt and power transmission problems; Wear of the connecting bracket may cause the overall structure of the tensioner to become unstable, affecting its normal operation.
Solution: Regularly inspect the various components of the tensioner. If severe wear is found on the tensioner wheel, it should be replaced with a new one in a timely manner. When selecting a new tensioner, ensure that its quality is reliable and matches the specifications and model of the original equipment. For the wear of the connecting bracket, if the degree of wear is mild, it can be treated through repair, reinforcement, and other methods; If the wear is severe and cannot be repaired, a brand new connection bracket needs to be replaced. Meanwhile, in daily use, it is important to pay attention to proper maintenance of the tensioner, such as regularly applying lubricants to reduce friction between components and extend its service life.

（3） Tensioner failure
Fault manifestation: The tensioner has completely lost its ability to tension the belt, resulting in the belt becoming loose and unable to function properly. This may be due to mechanical structural damage inside the tensioner, such as damage to gears, racks, and other components, or complete loss of elasticity of the spring.
Solution: Once it is determined that the tensioner has failed, the excavator should be stopped immediately to avoid more serious equipment failures caused by loose belts. Conduct a comprehensive disassembly and inspection of the tensioner to identify damaged components. If the mechanical structural components are damaged, the corresponding damaged parts need to be replaced and debugged after installation to ensure that the tensioner can work properly; If the spring has completely lost its elasticity, simply replace it with a new one. When replacing components, it is necessary to strictly follow the maintenance manual of the equipment to ensure the accuracy and reliability of installation.
4、 Key points of daily maintenance
（1） Check frequency
To ensure that the belt tensioner 324-3218 is always in good working condition, it is recommended to conduct a comprehensive inspection every [X] hours of operation or every [X] working days. Of course, this is only a basic reference standard, and the actual inspection frequency should be adjusted appropriately according to the operating environment and working conditions of the excavator. For example, if excavators often operate in harsh environments such as high temperature, high humidity, and dusty mines, or if the work intensity is high and the daily operation time is long, then it is necessary to shorten the inspection cycle appropriately and increase the number of inspections in order to timely discover potential problems and solve them.
（2） Inspection items
Installation position: Carefully check whether the installation position of the belt tensioner is correct and whether all fixing bolts are tightened. In the daily operation of excavators, the equipment will generate certain vibrations and impacts, which may cause the fixing bolts of the tensioner to loosen, thereby causing the position of the tensioner to shift. Once the position of the tensioner is offset, it cannot accurately tension the belt, which will affect the normal operation of the entire power transmission system. So, during inspection, it is important to ensure that the tensioner is securely installed in the designated position on the engine, all fixing bolts are tightened, and there are no signs of looseness.
Belt tension: Use a professional belt tension meter to check whether the tension of the belt is within the specified range. The appropriate tension range for excavators of different models and belts of different specifications also varies. For specific values, please refer to the equipment's operating manual. Appropriate belt tension is the key to ensuring power transmission efficiency and normal equipment operation. If the tension is too high, it will increase the wear of the belt and equipment components; If the tension is too low, it will cause the belt to slip and affect power transmission. During the testing process, if it is found that the belt tension does not meet the requirements, the tensioner should be adjusted in a timely manner to restore the tension to the normal range.
Tensioner components: Conduct a comprehensive inspection of all components of the tensioner, including the tensioner wheel, spring, connecting bracket, etc. Check if there is any wear, scratches, or deformation on the surface of the tensioner, rotate the tensioner, and check if it rotates flexibly and if there is any jamming. For springs, it is necessary to check for deformation, breakage, or reduced elasticity. The elasticity of the spring directly affects whether the tensioner can provide stable tension. The connection bracket needs to be checked for cracks, deformation, or wear to ensure its structural integrity and stability. Once damage or abnormal conditions are found in the components, timely repair or replacement should be carried out.
Belt appearance: In addition to inspecting the tensioner, it is also necessary to carefully observe the appearance of the belt. Check the surface of the belt for cracks, wear, aging, delamination, and other phenomena. If obvious damage is found on the belt, it should be replaced with a new belt in a timely manner to avoid serious faults such as belt breakage during use, which may affect the normal operation of the excavator. At the same time, it is also important to pay attention to whether there is any oil or debris on the surface of the belt. If there is, it should be cleaned up in a timely manner, as oil and debris can reduce the friction between the belt and the pulley, causing the belt to slip.
