珀金斯发动机2871A166交流充电发电机
详细描述

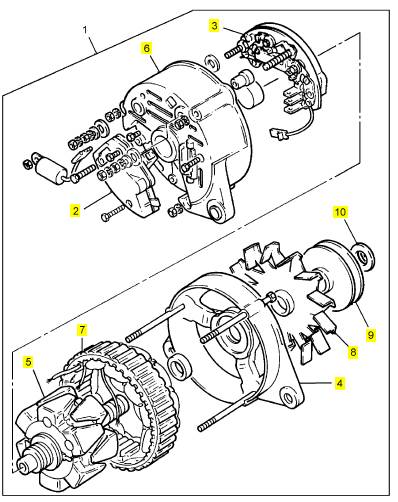

项目 零配件号码 最近的部分号码 描述
1 2871 A166 1 2871 A166 交流充电发电机
2 2614 D615 1 2614 D615 带
3 3313 E727 1 3313 E727 间隔器
4 2314 J022 1 2314 J022 螺旋
5 2318 A604 1 2318 A604 螺帽
6 2131 A010 1 2131 A010 垫圈
7 3615 X014 1 3615 X014 杆
8 2314 J018 1 2314 J018 螺旋
9 3312 K025 1 3312 K025 间隔器
10 2314 H004 1 2314 H004 螺旋
11 0920497 1 0920497 垫圈
项目 零配件号码 最近的部分号码 描述
2 28710404 1 28710404 调整器
3 28710403 1 28710403 整流器
4 28710402 1 28710402 托架组合
5 28710287 1 28710352 转子 - 电的修补
6 28710401 1 28710401 托架组合
7 28710353 1 28710353 固定子
8 28710296 1 28710477 风扇
9 28710400 1 28710400 交流充电发电机皮带轮
10 2871 W007 1 2871 W007 间隔器
项目 零配件号码 最近的部分号码 描述
1 2871 A166 1 2871 A166 交流充电发电机
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 28710404 1 28710404 REGULATOR
3 28710403 1 28710403 RECTIFIER
4 28710402 1 28710402 BRACKET ASSEMBLY
5 28710287 1 28710352 ROTOR - ELECTRIC REPAIR
6 28710401 1 28710401 BRACKET ASSEMBLY
7 28710353 1 28710353 STATOR
8 28710296 1 28710477 FAN
9 28710400 1 28710400 ALTERNATOR PULLEY
10 2871W007 1 2871W007 SPACER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 3681E029 1 3681E029 GASKET - CYLINDER HEAD
3 3681A056 1 3681A056 GASKET - CYL. HEAD COVER
4 3685A011 1 3685A011 GASKET - WATER PUMP
5 36834169 1 36834169 GASKET - WATER CONNECTION
6 3681V009 1 3681V009 GASKET - IND MANIFOLD
7 3688A009 1 3688A009 GASKET - EXHAUST MANIFOLD
8 U3688C037 1 U3688C037 GASKET
9 2415H490 4 2415H490 SEAL - INJECTOR
10 L311FF02 4 L311FF02 INJECTOR WASHER
11 4141A009 4 4141A009 CLAMP
14 2418M508 8 2418M508 SEAL - VALVE STEM
15 26420224 8 26420224 SEAL - INJECTOR
16 33811112 1 33811112 OLIVE
17 33811113 3 33811113 OLIVE
18 33811115 2 33811115 OLIVE
19 0566003 1 0566003 OLIVE
20 3682M002 1 3682M002 GASKET - WATER PUMP
21 2415A086 1 2415A086 SEAL - O RING
22 2415A092 1 2415A092 SEAL - O RING
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 3681E029 1 3681E029 GASKET - CYLINDER HEAD
3 3681A056 1 3681A056 GASKET - CYL. HEAD COVER
4 3685A011 1 3685A011 GASKET - WATER PUMP
5 36834169 1 36834169 GASKET - WATER CONNECTION
6 3681V009 1 3681V009 GASKET - IND MANIFOLD
7 3688A009 1 3688A009 GASKET - EXHAUST MANIFOLD
8 U3688C037 1 U3688C037 GASKET
9 2415H490 4 2415H490 SEAL - INJECTOR
10 L311FF02 4 L311FF02 INJECTOR WASHER
11 4141A009 4 4141A009 CLAMP
14 2418M508 8 2418M508 SEAL - VALVE STEM
15 26420224 8 26420224 SEAL - INJECTOR
16 33811112 1 33811112 OLIVE
17 33811113 3 33811113 OLIVE
18 33811115 2 33811115 OLIVE
19 0566003 1 0566003 OLIVE
20 3682M002 1 3682M002 GASKET - WATER PUMP
21 2415A086 1 2415A086 SEAL - O RING
22 2415A092 1 2415A092 SEAL - O RING
