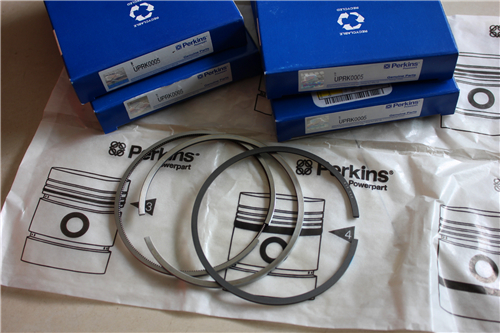

Perkins珀金斯850-854F柴油发动机T412817活塞环
详细描述
项目 零配件号码 最新件号 描述

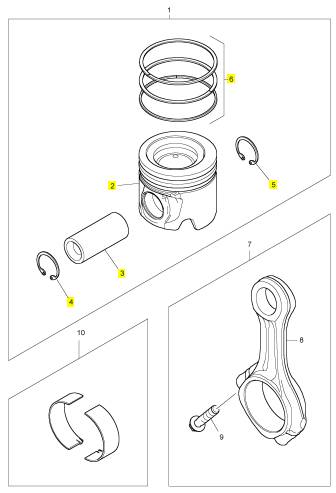

2 1 活塞
3 1 轴头销
4 T412193 1 T412193 CIRCLIP
5 T412193 1 T412193 CIRCLIP
6 T412817 1 T412817 活塞环总成
(6) T418483 1 T418483 活塞环总成 -特大号
|
Oil pump end float |
|
To check |
|
Operation 6-13 |
|
Special requirements |
|
Clearance mm (in) |
|
Standard |
|
Service limit |
|
0,10 - 0,15 (0.0040 - 0.0060) |
|
0,20 (0.0079) |
|
Use a feeler gauge to check the end float clearance of the oil pump. Adjust with 0,1. 0,15. 0,2. and 0,5 mm shims. |
|
78 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
This document has been printed from SPI². Not for Resale |
|
6 |
|
100 Series |
|
Governor spring |
|
To locate and to check |
|
Operation 6-14 |
|
The main governor springs are colour coded to assist with identification. The colour code is as follows: |
|
Part Number 198217580 198217570 198217320 198217110 |
|
Description Main Spring Main Spring Main Spring Main Spring |
|
Colour Code |
|
Black |
|
Purple |
|
Yellow - green Silver |
|
Note: Remember the locations of the start spring (A1) and the governor spring (A2). |
|
1 |
|
2 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
79 |
|
This document has been printed from SPI². Not for Resale |
|
6 |
|
100 Series |
|
Oil seal protector |
|
To fit |
|
Operation 6-15 |
|
Note: Fit the oil seal protector before the timing cover is fitted. |
|
80 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
This document has been printed from SPI². Not for Resale |
|
6 |
|
100 Series |
|
Timing cover |
|
To fit |
|
Operation 6-16 |
|

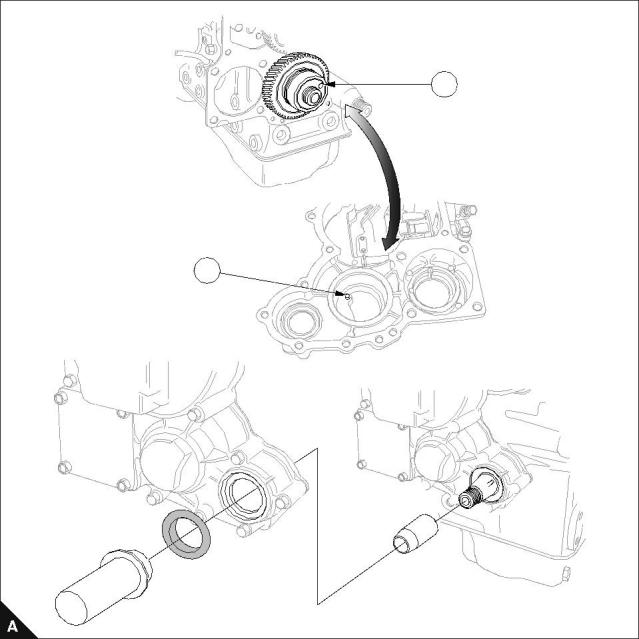

1 Ensure the oil pin (A1) locates in the hole (A2) in the idler gear. |
|
2 Remove the oil seal protector after the timing cover is fitted. Fit the key onto the crankshaft nose, refer to Operation 5-1. |
|
3 To fit the crankshaft pulley refer to Operation 5-1. |
|
2 |
|
1 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
81 |
|
This document has been printed from SPI². Not for Resale |
|
This page is intentionally blank |
|
This document has been printed from SPI². Not for Resale |
|
100 Series |
|
7 |
|
Cylinder block assembly |
|
7 |
|
Front bush |
|
To fit |
|
Operation 7-1 |
|

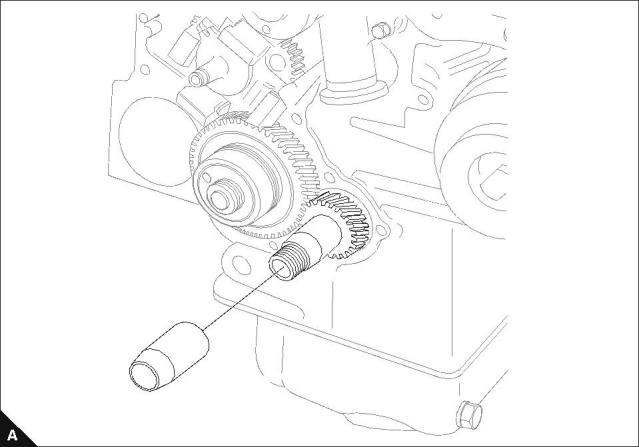

The bush must be fitted with the chamfered side (A2) into the block first, with the joint (A1) uppermost. To remove, use the tool from the inside of the cylinder block. |
|
