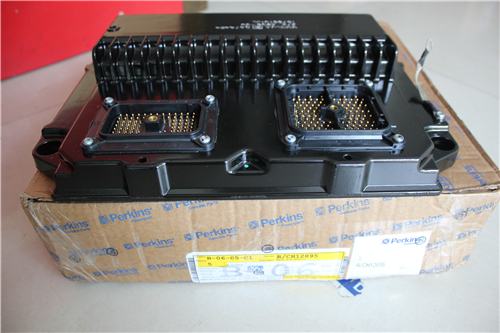

Perkins珀金斯1600柴油发动机1874252 C94X引擎控制组件ECM电脑控制模块
详细描述

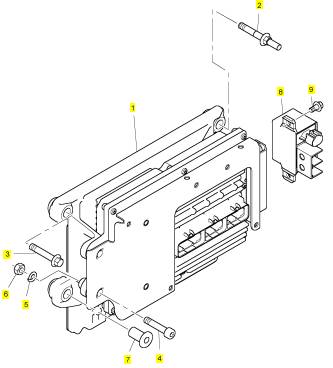

项目 零配件号码 新件号 描述
1 1874252 C93X 1 1874252 C94X 引擎控制组件ECM电脑控制模块
2 1842452 C1 1 1842452 C1 螺拴
3 1817960 C1 3 1817960 C1 公制的螺拴
4 40255 R1 4 40255 R1 螺旋
5 934309 R1 4 934309 R1 垫圈
6 30910 R1 4 30910 R1 螺帽
7 1837747 C1 4 1837747 C1 衬套
8 1889878 C1 1 1889878 C1 接替者
9 1817810 C1 2 1817810 C1 公制的螺拴
|
