Peregrine EDi and 1300 Series EDi

Turbocharger faults

The chart below is given to assist in the correct diagnosis of turbocharger faults.

Problems

Possible causes, code numbers

1, 4, 5, 6, 7, 8, 9, 10, 11, 18, 20, 21, 22, 25, 26, 27, 28, 34,

Not enough power

35, 36

1, 4, 5, 6, 7, 8, 9, 10, 11, 18, 20, 21, 22, 25, 26, 27, 28, 34,

35, 36

Black smoke

Blue smoke

1, 2, 4, 6, 8, 9, 17, 19, 20, 21, 22, 30, 31, 32, 34

2, 8, 15, 17, 19, 20, 28, 29, 31, 32, 34

2, 7, 8, 17, 19, 20, 22, 28, 30, 31, 32

1, 2, 4, 5, 6, 8, 19, 20, 21, 28, 31, 32

8, 12, 14, 15, 16, 23, 24, 29, 32, 33, 37, 38

2, 7, 17, 18, 19, 20, 22, 28, 31, 32

High consumption of lubricating oil

Too much lubricating oil at the turbine end

Too much lubricating oil at the compressor end

Not enough lubrication

Lubricating oil in the exhaust manifold

1, 2, 3, 4, 5, 6, 8, 10, 11, 17, 18, 19, 20, 21, 28, 32, 34, 39,

40

Inside of the induction manifold wet

Damaged compressor impeller

Damaged turbine rotor

3, 4, 6, 8, 12, 15, 16, 20, 21, 23, 24, 29, 32, 33, 37, 38

7, 8, 12, 13, 14, 15, 16, 18, 20, 22, 23, 24, 25, 27, 29, 32,

33, 37, 38

3, 6, 7, 8, 12, 13, 14, 15, 16, 18, 20, 22, 23, 24, 29, 32, 33,

37, 38

Rotating assembly does not turn freely

Worn bearings, bearing bores or journals

Noise from the turbocharger

6, 7, 8, 12, 13, 14, 15, 16, 23, 24, 29, 33, 37, 38

1, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, 20, 21,

22, 23, 24, 29, 32, 33, 34, 37, 38,

Sludge or carbon deposit in the bearing housing

2, 11, 13, 14, 15, 17, 18, 24, 29, 33, 37, 38

Workshop Manual, TPD 1353E, Issue 3

125

This document has been printed from SPI². Not for Resale

9

Peregrine EDi and 1300 Series EDi

List of possible causes

1  Element of the air filter dirty

2  Restricted crankcase breather

3  Element of the air filter missing, leaking or not sealing correctly. Loose connection to turbocharger.

4  Internal distortion or restriction in pipe from air filter to turbocharger.

5  Damaged / restricted crossover pipe, turbocharger to induction manifold.

6  Restriction between air filter and turbocharger.

7  Restriction in exhaust system.

8  Turbocharger loose or clamps / setscrews loose.

9  Induction manifold cracked or loose, flanges distorted.

10  Exhaust manifold cracked or loose, flanges distorted.

11  Restricted exhaust system.

12  Delay of lubricating oil to turbocharger at engine start.

13  Insufficient lubrication.

14  Dirty lubricating oil.

15  Incorrect lubricating oil.

16  Restricted lubricating oil supply pipe.

17  Restricted lubricating oil drain pipe.

18  Turbine housing damaged or restricted.

19  Leakage from turbocharger seals.

20  Worn turbocharger bearings.

21  Excessive dirt in compressor housing.

22  Excessive carbon behind turbine rotor.

23  Engine speed raised too rapidly at initial start.

24  Insufficient engine idle period.

25  Faulty fuel injection pump.

26  Worn or damaged atomisers.

27  Valves burned.

28  Worn piston rings.

29  Lubricating oil leakage from supply pipe.

30  Excessive preservation fluid (on initial engine start).

31  Excessive engine idle period.

32  Restriction in turbocharger bearing housing.

33  Restriction in lubricating oil filter.

34  Wet type air cleaner: Restricted, dirty element, viscosity of oil too low / high.

35  Waste-gate actuator faulty or damaged.

36  Waste-gate valve not free.

37  Engine stopped too soon from high load.

38  Insufficient lubricating oil.

39  Fuel leakage from fuelled starting aid.

40  Crack in backplate of compressor.

126

Workshop Manual, TPD 1353E, Issue 3

This document has been printed from SPI². Not for Resale

Peregrine EDi and 1300 Series EDi

10

Lubrication system

10

General description (Low-pressure system)

Refer to "Low-pressure system flow diagram" on page 128 for illustration references.

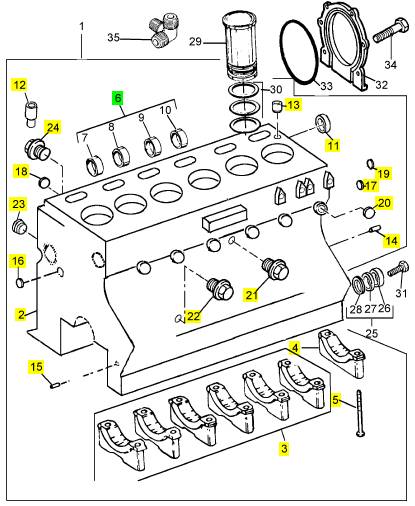

Lubricating oil from the sump passes through a strainer and a pipe into a channel in the timing case. The

lubricating oil passes through the channel to the inlet of the oil pump.

The lubricating oil passes from the oil pump, under pressure, through a channel in the timing case. The oil

either passes through a relief valve which is fitted in the timing case or passes into an oil pressure rail. The

2

2

relief valve opens at 551 kPa (80 lbf/in  ) 5,6 kgf/cm  and returns the oil to the sump.

A temperature control valve in the oil filter head controls the flow of oil from the pressure rail. If the oil is hot

(A2), the valve will open and the oil passes through the oil cooler to the oil filter head and then into the filter. If

the oil is cold (A3), the valve closes and the oil passes directly to the oil filter.

2

Clean lubricating oil (A1) passes from the filter to a regulator valve which operates at 331 kPa (48 lbf/in  )

2

3,37 kgf/cm . If a restriction occurs in the filter element, a by-pass valve fitted in the filter housing opens. Oil

that by-passes the filter passes directly to the regulator valve. The regulator valve either by-passes oil to the

sump or allows oil to pass to the main pressure rail and then through ports in the cylinder block to the

crankshaft main journals.

Lubricating oil from the main pressure rail also passes:

l   To jets in the crankcase that spray oil on the underside of the pistons to cool them.

l   Through a channel in the crankcase and in the timing case to the reservoir for the high-pressure pump.

There are ports in the crankcase through which oil passes to the camshaft journals.

Lubricating oil passes through holes drilled in the crankshaft journals to the crank pins to lubricate the big end

bearings.

Lubricating oil from the rear journal of the crankshaft passes to the rear of the rocker shaft. The oil passes along

the hollow rocker shaft to lubricate the rocker levers.

The turbocharger receives clean oil through a pipe from the oil filter head. The oil passes through the bearing

housing of the turbocharger and returns through a pipe to the crankcase, and then to the sump.

The compressor, if fitted, receives oil from a union connection fitted to the cylinder block. Lubricating oil from

the main pressure rail passes through a drilled hole to the union, the oil then passes to the compressor.

Lubricating oil from the compressor returns to the sump.

Workshop Manual, TPD 1353E, Issue 3

127

This document has been printed from SPI². Not for Resale

10

Peregrine EDi and 1300 Series EDi

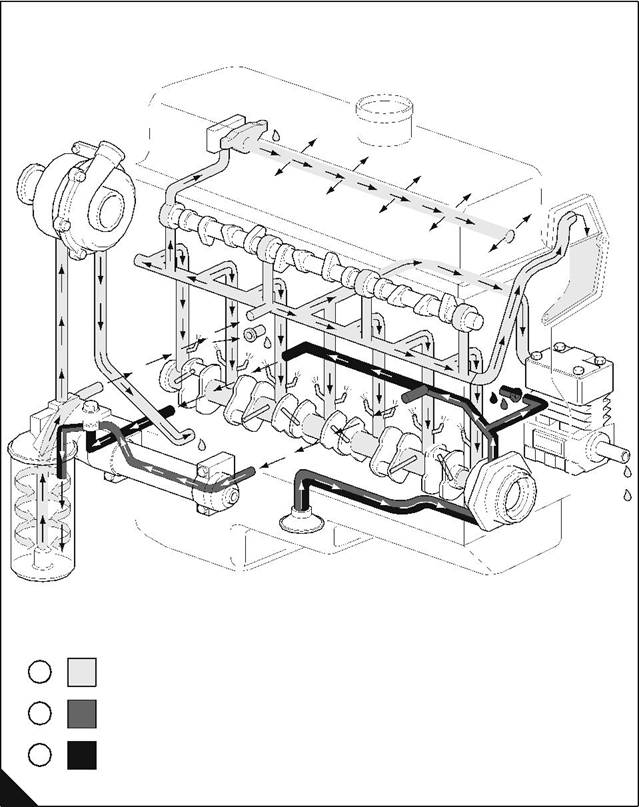

Low-pressure system flow diagram

A1   Filtered oil

A2   Hot oil

A3   Cold oil

1

2

3

A

W201

128

Workshop Manual, TPD 1353E, Issue 3

This document has been printed from SPI². Not for Resale

10

Peregrine EDi and 1300 Series EDi

Filter canister

To renew the canister of the lubricating oil filter

Operation 10-1

Warning! Discard the used canister and lubricating oil in a safe place and in accordance with local regulations.

Caution: Ensure that the application is on a level surface to ensure an accurate reading on the dipstick.

1  Operate the engine before the oil filter is removed. This ensures that oil is in the bearing housing of the

turbocharger.

2  Put a tray under the filter to retain lubricating oil.

3  Clean thoroughly the outer surfaces of the filter assembly.

4  Use a strap wrench or similar tool to loosen the filter canister, remove and discard the canister. Ensure that

the adaptor (A1) is secure in the filter head.

Warning! Discard the used canister and lubricating oil in a safe place and in accordance with local regulations.

5  Clean inside the filter head.

6  Lubricate the seal (A2) on top of the new canister with clean engine lubricating oil.

7  Fit the new canister and tighten by hand until the seal contacts the filter head. Tighten the canister a further

1/   to  /   of a turn by hand. Do not use a strap wrench.

3

2

4

8  Ensure that there is lubricating oil in the sump.

1

2

A

W014

Continued

Workshop Manual, TPD 1353E, Issue 3

129

This document has been printed from SPI². Not for Resale

10

Peregrine EDi and 1300 Series EDi

9  Turn the start key to the ‘ON’ position and start the engine.

Note: The engine will not start and operate until oil pressure is obtained. Oil pressure is indicated when the

warning light is extinguished or by a reading on the gauge.

Caution: Do not fill the sump past the ‘FULL’ mark on the dipstick.

10  When the engine starts check for leakage from the filter. Stop the engine. After 15 minutes check the oil

level on the dipstick and, if necessary, put more lubricating oil into the sump.

130

Workshop Manual, TPD 1353E, Issue 3

This document has been printed from SPI². Not for Resale

10

Peregrine EDi and 1300 Series EDi

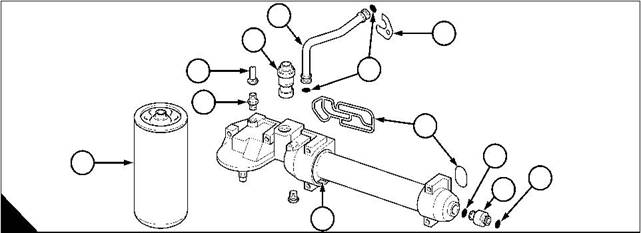

Oil filter head and cooler assembly

To remove

Operation 10-2

Note: The casting for the oil filter head includes the rear end-casing for the oil cooler (A7) and houses the oil

temperature control valve. The oil filter head and the oil cooler are an assembly.

1  Drain the engine lubricating oil.

2  Drain the cooling system.

1

3

11

10

2

9

4

6

8

6

5

A

7

W059

3  Remove the lubricating oil canister (A8), see Operation 10-1.

4  Disconnect the oil supply pipe (A10) for the turbocharger.

5  Remove the setscrew from the clamp (A3) for the coolant inlet pipe (A1).

6  Release the setscrews and remove the oil filter head and cooler assembly (B) from the cylinder block.

7  Discard the joints (A4) from the filter head and discard the ’O’ rings (A2) from the coolant inlet pipe.

8  Remove the coolant outlet pipe (A5) and discard the ’O’ rings (A6) from the coolant outlet pipe.

B

W124

Workshop Manual, TPD 1353E, Issue 3

131

This document has been printed from SPI². Not for Resale

10

Peregrine EDi and 1300 Series EDi

To fit

Operation 10-3

Special requirements

Consumable products

Description

Part number

21820117 or

21820118

POWERPART Threadlock and nutlock

1  Clean the outside of the oil filter head and cooler assembly (A7). Clean the joint face on the cylinder block,

the coolant inlet pipe (A1) and coolant outlet pipe (A5).

2  Fit new joints (A4) to the filter head and fit new ’O’ rings (A2 and A6) to the coolant inlet and outlet pipes.

1

3

11

10

2

9

4

6

8

6

5

A

7

W059

3  Put the filter head and oil cooler assembly (B) in position on the cylinder block. Ensure that the coolant inlet

pipe is correctly engaged in the cylinder block and in the filter head. Fit and tighten the setscrews for the filter

head / oil cooler assembly.

4  Fit and tighten the setscrew for the clamp (A3) of the coolant inlet pipe.

5  Clean the threads of the union connection (A9) for the turbocharger pipe (A10). Apply POWERPART

Threadlock and nutlock to the thread of the connection that enters the filter head. Use a separate spanner to

hold the union connection while the union nut on the pipe is tightened.

6  Fit a new oil filter canister (A8), see Operation 10-1.

7  Fill the cooling system to the correct level.

8  Fill the sump to the correct level with lubricating oil of an approved grade, see Chapter 5 in the User’s

Handbook.

B

W124
