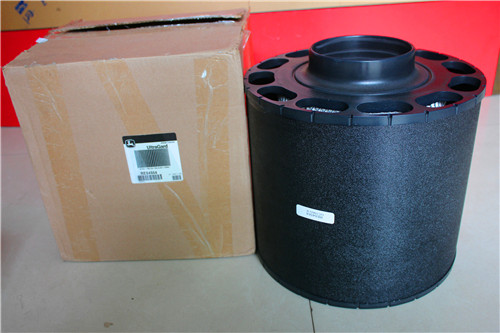

空气滤清器

John Deere约翰迪尔强鹿6068  6.8L柴油发动机空气滤清器零件图册

9701 (AIR CLEANER TWO STAGE)

9701 (FILTRE A AIR ET CHAPEAU DE PLUIE)

9701 (LUFTFILTER UND REGENSCHUTZKAPPE)

9701 (DEPURATORE DI ARIA E PROTEZIONE DELLA PIOGGIA)

9701 (FILTRO DE AIRE Y CASQUILLO DE LA LLUVIA)

9701 (LUFTFILTER OCH REGNSKYDD)

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 AT50923 HOSE CLAMP 1 X

2 R128438 SUCTION HOSE 1 X

3 AT56657 HOSE CLAMP 1 X

4 AT175358 CAP 1 X

5 AT115660 AIR CLEANER 1 X

6 AR64937 BAND 2 X

7 19M7784 SCREW 4 X M10 X 20

8 RE70724 BRACKET 1 X

9 14M7296 FLANGE NUT 4 X

10 RE500801 AIR CLEANER 1 X

11 R128992 REDUCER 1 X

12 R128993 REDUCER 1 X

9701 (AIR CLEANER AND RAIN CAP)

9701 (FILTRE A AIR ET CHAPEAU DE PLUIE)

9701 (LUFTFILTER UND REGENSCHUTZKAPPE)

9701 (DEPURATORE DI ARIA E PROTEZIONE DELLA PIOGGIA)

9701 (FILTRO DE AIRE Y CASQUILLO DE LA LLUVIA)

9701 (LUFTFILTER OCH REGNSKYDD)

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 1 REMARKS

1 R128437 SUCTION HOSE 1 X

2 AT56657 HOSE CLAMP 1 X

3 AT175358 CAP 1 X

4 AR79680 FILTER ELEMENT 1 X

5 AR52066 PACKING 1 X

6 E17421 LOCK NUT 1 X

7 AR79679 AIR FILTER 1 X

8 AR52065 PACKING 1 X

9 AN191169 WING SCREW 1 X

10 AR84565 COVER 1 X

11 R48723 WING NUT 1 X

12 R110531 CLAMP 1 X

13 AT115660 AIR CLEANER 1 X

14 19M7784 SCREW 4 X

15 AR64936 BRACKET 2 X

16 14M7296 FLANGE NUT 4 X M10

17 R128993 REDUCER 1 X

18 R128992 REDUCER 1 X

19 RE68008 AIR CLEANER 1 X

20 R128994 ELBOW FITTING 1 X
