John Deere 3029 2.9T 柴油机配件

湖南英珀威机械有限公司专业的John Deere 3029 2.9T 柴油机配件 销售维修保养服务代理商，服务热线：15580888444
产品咨询

详细描述

John Deere 3029 2.9T Piston (m) RE61270


PowerTech
 Series
Engine & Equipment Model
3029
2.9T

From ESN 258,847

CODE 4808

Bore:
4.19 in 106.5 mm

Pin Ø:
1.62 in 41 mm

Con Rod (m):
R105011
R501073
Piston (m):
RE61270

Applications

AGRICULTURAL
5400
261581 >
5400N
8875
Skid Steer
OEM
2.9L
1)
Engine O/H Kit
TOK2.9T
(Click for Kit Contents)
TOK2.9TA
(Click for Kit Contents)
(8)
2)
Engine I/F Kit
TIK2.9T
(Click for Kit Contents)
TIK2.9TA
(Click for Kit Contents)
(8)
Piston-Liner Kit
TRE67426
Consists of:
a)
TRE61270
b)
TRE66271
c)
TMX3915
d)
TR116281
e)
TAR65507
f)
TR54114
Main Bearing
TRE27352
Std.
TRE27353
0.010
TRE27360
0.020
TRE27368
0.030
Use 3
Thrust Bearing
TAT21139
Std.
TAT21132
0.010
TAT21134
0.020
TAT21136
0.030
Use 1
Con Rod Bearing
TRE27348
Std.
TRE27349
0.010
TRE27358
0.020
TRE27364
0.030
Use 3
1)
Front Seal
TAR67942
2)
Rear Seal
TRE44574
3)
Crankshaft
TRE521348
(4)
4)
Crankshaft, Gear
TT20094
(1)
5)
Ring Gear
TR114282
(142T)
TR28811
(129T)
6)
Sleeve, Front
TR81989
7)
Packing, Sleeve
TH35244
1)
O/H Gasket Set
TRE501578
2)
Head Gasket Set
TRE38850
3)

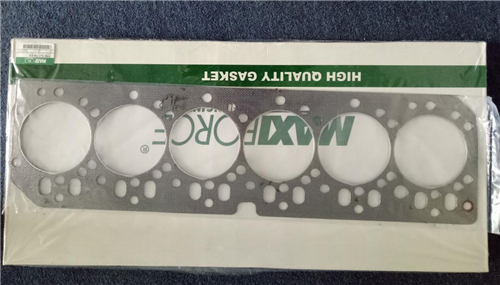

Head Gasket
TR97356
4)
Oil Pan Gasket
TR97341
5)
Rocker Cover Gsk
TR106796
1)
Bush, Con Rod
TR57451
x3
(3)
2)
Bolt, Con Rod
TR80033
x6
(5)
TR501124
x6
(5)
1)
Pump, Oil
TRE55343
2)
Oil Cooler
TRE61767
3)
Rocker Arm
TRE31973
4)
Rocker Arm Shaft
TR54985
5)
Cyl Hd Cap Screw
TR85363
x14
(2)
1)
Lower Gear
TAT24252
(1)
2)
Lower Bushing
TT26321
3)
Upper Gear
TAT18009
(1)
4)
Upper Bushing
TT20034
5)
Cam. Follower
TT20073
x6
6)
Cam. Gear
TT20070
(1)
7)
Camshaft Kit
TRE55900
(10)
8)
Camshaft
TR106957
(10)

Valve Section

(Click image to zoom the valve diagram.)

Valve, Intake
TR98062
Std.
TR97490
0.015
Valve, Exhaust
TR90692
Std.
TR97492
0.015
1)
Insert, Valve In
TR106831
2)
Insert, Valve Ex
TR106829
1)
Seal, Valve
TRE31617
2)
Lock, Valve
TR91889
1)
Spring, Valve
TR26125
2)
Rotator, Valve
TRE60005
1)
Thermostat
TRE64354
180° F
2)
Water Temp Sensor
TRE52722
(9)
3)
Crankshaft Sensor
TRE519144
(9)
1)
Fuel Transfer Pump
TRE38009
2)
Fuel Pump Electric
TAL155607
(9)
Water Pump Repair Kit
See Chart
Water Pump
TAR97708U
(6)
TRE60489
(7)
TRE67185
(9)
1)
Injector, Pencil
TRE38087
2)
KIT, GROMMET
TMX504
3)
Seal Kit
TRE64292
Glow Plug
1)
TRE502079
(11 V)
2)
TRE504580
x3
(10 V)
3)
Air Heater
TRE502668
(12 V)

(1) Helicoidal Gears.

(2) Replace all R78558 Cap Screws with Flanged Head Cap Screw TR85363.

(3) After bushing installation, machine bushing to fit the shape of connecting rod before fitting piston pin.

(4) Kit contains TT20094 helical gear to convert to a TRE50979 Crankshaft.

(5) With Machine Split Con Rod use TR80033 and With Fractured Con Rod use TR501124.

(6) (m) R73604.

(7) (m) R100812, (m) R127337, (m) R127918, (m) R55164.

(8) For used with Fractured split connecting rod.

(9) Check your application for proper usage.

(10) Camshaft has a 40 mm wide front bearing journal and made for a rear press in tachometer drive, it will replace early camshafts with narrower front bearing journal without any issue. Replaces camshafts marked T20015, T20016, R79643, R106957 and RE522311.
