John Deere 约翰迪尔4045 4.5T/H强鹿柴油机大修配件

湖南英珀威机械有限公司专业的John Deere 约翰迪尔4045 4.5T/H强鹿柴油机大修配件销售维修保养服务代理商，服务热线：15580888444
产品咨询

详细描述

John Deere 4045 4.5T/H Piston (m) RE527039 Tier 2 & Tier 3


PowerTech
 Series
Engine & Equipment Model
4045T/H
For Tier 2 & Tier 3 Applications

2 Valve per Cylinder

CODE 4838

Bore: 4.19 in 106.5 mm Pin Ø: 1.6250 in (+/- .0002) = 41mm

Engine Model Code:

 4045HE051

 4045HL282

 4045HL287

 4045HL288

 4045HT054

 4045HT064

 4045HT065

 4045HT067

 4045HT074

 4045HT075

4045HDW53

4045HDW54

4045HE050

4045HL280

4045HL281

4045HL282

4045HL283

4045HL284

4045HL287

4045HL288

4045HP052

4045HT054

4045HT056

4045HT059

4045HT061

4045HT064

4045HT065

4045HT072

4045HT086

4045HT087

4045HT281

Con Rod (m):
R500335 (Fractured) (9)
Piston (m):
RE527039

Applications

AGRICULTURAL
5080R
6130
5080RN
6130D
5090R
6140D
5090RN
6230
5100R
6325
5100RN
6330
5105M
6430
5105ML
6425
6100D
6534
6110D
6115D
6125D
AKSA
APD-AGJ80
APD-AG100
APD-AGJ125
APD-AT80
APD-AT100
APD-EPAJ80
APD-EPAJ100
APD-EPAJ125
APD-ULJ80
APD-ULJ100
APD-ULJ125
CONSTRUCTION
335D
344J
437D
650J
710J
ML1335
310J
310SJ
410J
HI POWER GENSET
HJW 85 T6
HJW 105 T6
HJW 130 T6
HRJW 75 T6
HRJW 90 T6
HRJW 115 T6
HRJW 145 T6
SDMO Generator
R90C3
R110C3
SKID STEER
280
280 Series II
1)
柴油发动机大修包
TRE532715
(Click for Kit Contents)
2)
Engine I/F Kit
TIK532715
(Click for Kit Contents)

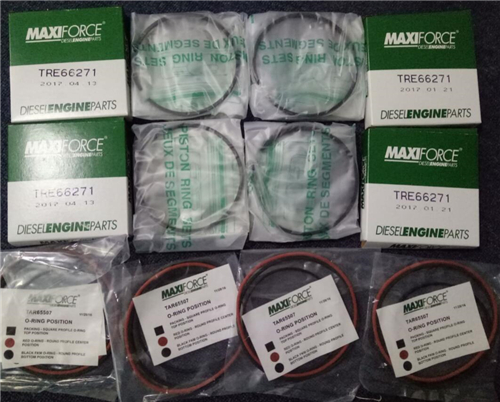

Piston-Liner Kit
TRE536083
Consists of:
a)
TRE527039
b)
TRE527844
c)
TR502755
d)
TR116397
e)
TAR65507
f)
TR54114
Main Bearing
TRE65165
Std.
TRE65911
0.010
TRE65165B
0.020
(2)
Use 4
Thrust Bearing
TRE65168
Std.
TRE65912
0.010
TRE65168B
0.020
(2)
Use 1
Con Rod Bearing
TRE65908
Std.
TRE65909
0.010
TRE65908B
0.020
(2)
Use 4
1)
Front Seal
TRE505515
(1)
2)
Rear Seal
TRE44574
3)
Ring Gear
TR114282
(142T)
(5)
TR28811
(129T)
4)
Crankshaft
TRE504638
(4)
TRE506195
(3)
1)
O/H Ga, sket Set
TRE532713
2)
Head Gasket Set
TRE532842
3)
Head Gasket
TR116515
4)
Oil Pan Gasket
TR97342
(5)
TR521493
(5)
5)
Rocker Cov Gsk
TR123542
(5)
TR524468
(5)
1)
Bush, Con Rod
TR114082
x4
2)
Bolt, Con Rod
TR501124
x8
3)
Bush, Bal. Shaft
TR115299
x6
4)
Bush, Camshaft
TR119874
x1
5)
Bal. Shaft R/H
TRE500448
6)
Bal. Shaft L/H
TRE500449
7)
Cam Follower
TR123565
x8
1)
Cyl Hd Cap Screw
TR85363
x18
(5)
TR502511
x18
(5)
2)
Tensioner, Belt
TRE518097
(5)
TRE68715
(5)
3)
Con Rod
TRE500608
4)
Oil Cooler
TRE59296
(5 Plates)
TRE56690
(7 Plates)
TRE59298
(9 Plates)
1)
Water Pump
TRE500734
(5)
(High Flow)
2)
Water Pump Cov
TRE508566
3)
Water Pump Gsk
TR123417
4)
Pump, Oil
TRE504914
(5)

Valve Section

(Click image to zoom the valve diagram.)

Valve, Intake
TR98062
Std.
TR97490
0.015
Valve, Exhaust
TR90692
Std.
TR97492
0.015
1)
Insert, Valve In
TR106831
Std.
2)
Insert, Valve Ex
TR106829
Std.
1)
Seal, Valve
TRE31617
2)
Lock, Valve
TR91889
1)
Spring, Valve
TR26125
(5)
2)
Rotator, Valve
TRE60005
(5)
1)
Thermostat
TRE522076
180° F
(5)
TRE528652
180º F
(5)
TRE540550
180° F
<, DIV class="field-item even" style="BORDER-TOP: 0p, x; FONT-FAMILY: inherit; BORDER-RIGHT: 0px; VERTICAL-ALIGN: baseline; BORDER-BOTTOM: 0px; PADDING-BOTTOM: 0px; PADDING-TOP: 0px; PADDING-LEFT: 0px; BORDER-LEFT: 0px; MARGIN: 0px; PADDING-RIGHT: 0px; font-stretch: inherit">(5)
TRE64354
180° F
(5)
2)
Thermostat Cover
TR501130
(5)
3)
Water Temp Sensor
TRE51774
(5)
4)
Water Temp Sensor
TRE52722
(5)
5)
Oil Pressure Sensor
TRE167207
(5)
6)
Crankshaft Sensor
TRE519144
(5)
7)
Fuel Pressure Sensor
TRE522794
(5)
8)
Temperature Sensor
TRE522823
(5)
Fuel Transfer Pump
TRE66153
(5) (6)
TRE68345
(5) (7)
TRE502513
(5) (8)
Glow Plug
1)
TRE502079
(11 V)
2)
TRE504580
x4
(10 V)
3)
Air Heater
TRE502668
(12 V)

(1) 1 Piece Unitized Seal and Wearsleeve; Replaces TRE59810, RE538097.

(2) Proper bearing journal radius must be maintained during the machining of the crankshaft to ensure proper operation.

(3) Taper Nose.

(4) Straight Nose.

(5) Check application for proper usage.

(6) Line Connections are both threaded.

(7) Line Connections are one hose barb & one threaded.

(8) Line Connections are two hose barbs.

(9) Machine split and fractured split connecting rods may both be used in the same engine, but the correct con rod bolts must be used for each connecting rod.
