John Deere约翰迪尔 6068 6.8T/H 农业 工程机械柴油机配件

湖南英珀威机械有限公司专业的John Deere约翰迪尔 6068 6.8T/H 农业 工程机械柴油机配件销售维修保养服务代理商，服务热线：15580888444
产品咨询

详细描述

John Deere 6068 6.8T/H Piston (m) RE521616 Tier 2 & Tier 3


PowerTech
 Series
Engine & Equipment Model
6068T/H
For Tier 2 & Tier 3 Applications

4 Valve per Cylinder



CODE 4834

Bore:
4.19 in 106.5 mm

Pin Ø:
1.6250 in (+/- .0002) = 41mm

Con Rod (m):
R500335 (Fractured) (9)
Piston (m):
RE521616

Applications

AGRICULTURAL
640GIII
7210J
640H
7225J
648GIII
7430E
6830
7530
648H
7630
648HTJ
7730
748H
7830
748HTJ
7930
848H
9540IWTS
848HTJ
9560 STS
2954D
9570 STS
4730
9580I WTS
4830
S550 STS
5430
T550
7195J
W540
CONSTRUCTION
240DLC
670G
250GLC
670GP
270DLC
672G
290GLC
672GP
624K
764
624KR
755D
644J
850J
644K
HI POWER GENSET
HJW 205 T6
AKSA
APD-AJG200
APD-AT200
APD-EPAJ200
APD-ULJ200
CLASS TRACTOR
Axion 850
1)
Engine O/H Kit
TRE527834
(Click for Kit Contents)
2)
Engine I/F Kit
TIK527834
(Click for Kit Contents)
Piston-Liner Kit
TRE524450
Consists of:
a)
TRE521616
b)
TRE524453
c)
TR502755
d)
TR116397
e)
TAR65507
f)
TR54114
Main Bearing
TRE65165
Std.
TRE65911
0.010
TRE65165B
0.020
(2)
Use 6
Thrust Bearing
TRE65168
Std.
TRE65912
0.010
TRE65168B
0.020
(2)
Use 1
Con Rod Bearing
TRE65908
Std.
TRE65909
0.010
TRE65908B
0.020
(2)
Use 6
1)
Front Seal
TRE505515
(1)
2)
Rear Seal
TRE44574
3)
Ring Gear
TR114282
(5)
TR28811
(5)
4)
Crankshaft
TRE515785
(3)
TRE505921
(4)
1)
O/H Gasket Set
TRE527833
2)
Head Gasket Set
TRE527832
3)
Head Gasket
TR116516
4)
Oil Pan Gasket
TR521498
(5)
TR123354
(5)
5)
Rocker Cover Gsk
TR524496
TR524497
1)
Bush, Con Rod
TR114082
x6
2)
Bolt, Con Rod
TR501124
x12
3)
Bush, Camshaft
TR119874
x1
4)
Cam Follower
TR123565
x12
1)
Cyl Hd Cap Screw
TR502511
x26
2)
Tensioner, Belt
TRE518097
3)
Con Rod
TRE500608
4)
Oil Cooler
TRE59296
(5 Plates)
TRE56690
(7 Plates)
TRE59298
(9 Plates)
1)
Water Pump
TRE500734
(5)
(High Flow)
TRE546918
(5)
2)
Water Pump Cov
TRE508566
3)
Water Pump Gsk
TR123417
(5)
4)
Pump, Oil
TRE504914
(5)
TRE521756
(5)

Valve Section

(Click image to zoom the valve diagram.)

Valve, Intake
TRE531221
Std.
(5)
TRE518080
Std.
(5)
Valve, Exhaust
TRE518081
Std.
1)
Insert, Valve In
TRE518082
Std.
2)
Insert, Valve Ex
TRE518083
Std.
1)
Seal, Valve
TRE526519
x24
(5)
TRE519115
x24
(5)
2)
Lock, Valve
TR502371
x48
(5)

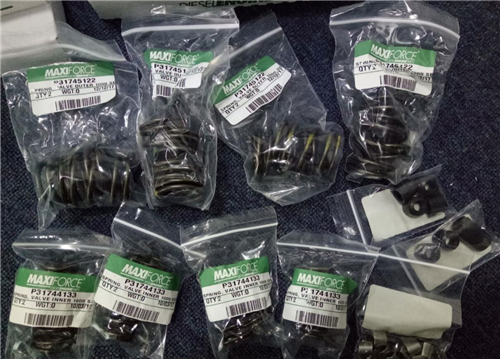

1)
Spring, Valve
TR518872
x24
(5)
TRE516486
x24
(5)
1)
Thermostat
TRE522076
180° F
(5)
TRE538289
180º F
(5)
TRE64354
180° F
(5)
2)
Thermostat Cover
TR501130
3)
Water Temp Sensor
TRE51774
(5)
4)
Water Temp Sensor
TRE52722
(5)
5)
Oil Pressure Sensor
TRE167207
(5)
6)
Crankshaft Sensor
TRE519144
(5)
7)
Fuel Pressure Sensor
TRE522794
(5)
8)
Temperature Sensor
TRE522823
(5)
Fuel Transfer Pump
TRE66153
(5) (6)
TRE68345
(5) (7)
TRE502513
(5) (8)
TRE517230
(5)
Glow Plug
1)
TRE502079
(11 V)
2)
TRE504580
x6
(10 V)
3)
Air Heater
TRE502668
(12 V)
1)
Injector Tube
TRE543935
x6
2)
Injector O-Ring
TRE528349
TRE530609

(1) 1 Piece Unitized Seal and Wearsleeve; Replaces TRE59810, RE538097.

(2) Proper bearing journal radius must be maintained during the machining of the crankshaft toensure proper operation.

(3) Crankshaft (m) R116076, Straight Nose.

(4) Crankshaft (m) R503470, Taper Nose.

(5) Check application for proper usage.

(6) Line Connections are both threaded.

(7) Line Connections are one hose barb & one threaded.

(8) Line Connections are two hose barbs.

(9) Machine split and fractured split connecting rods may both be used in the same engine, but the correct con rod bolts must be used for each connecting rod.
